Croxley Tip and Watford Railway Tour.

Postby PeterH » Thu Apr 21, 2011 2:47 am

On Tuesday 19th April 2011, due to the lovely weather I took a trip out on my bicycle to Croxley Tip. I have had an interest in this site as a plausible layout. A thread on my initial investigation can be seen here: viewtopic.php?f=32&t=31119

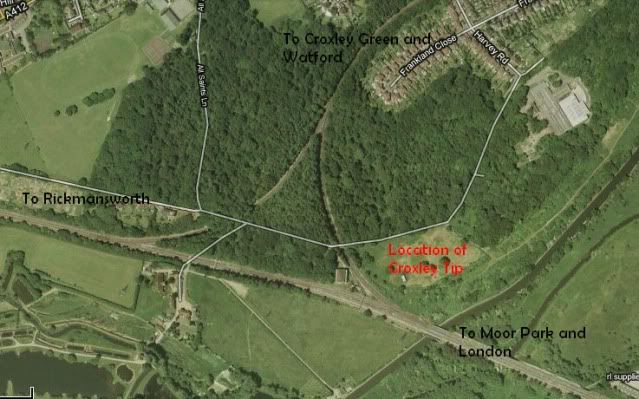

This is the site of Croxley Tip from Google Maps.

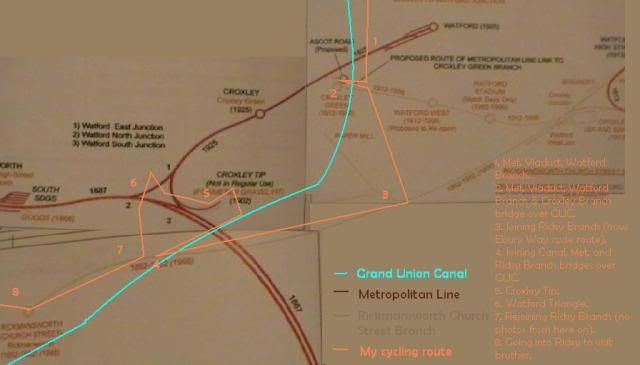

Whilst out I documented my progress with photographs. The diagram below shows my progress:

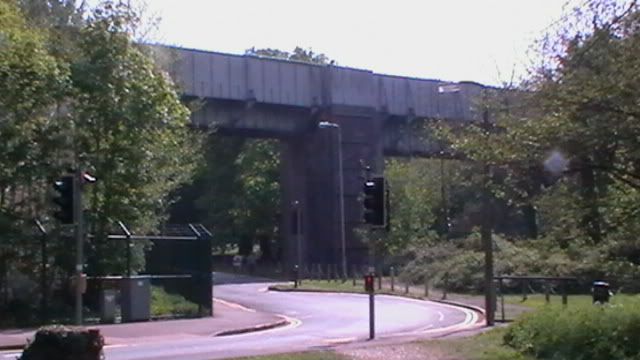

First off is the viaduct of the Watford Branch of the Met. Line, seen approaching from Cassiobury Park.

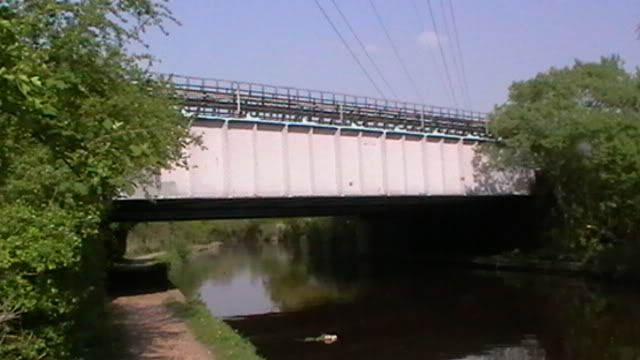

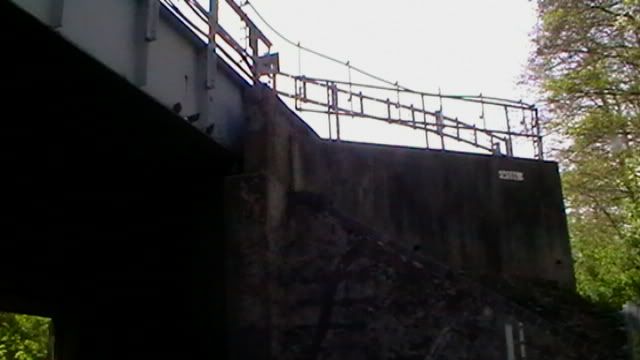

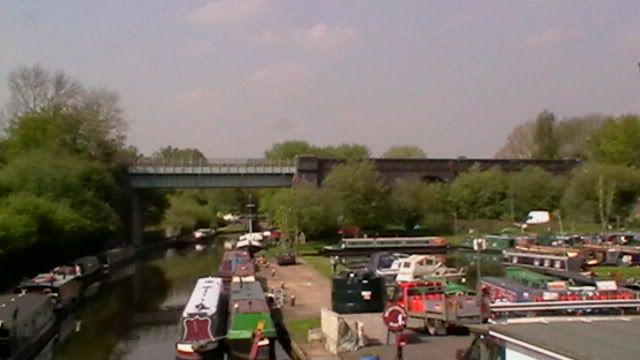

Next, we see the same viaduct from the other side, as it bridges the Grand Union Canal (GUC).

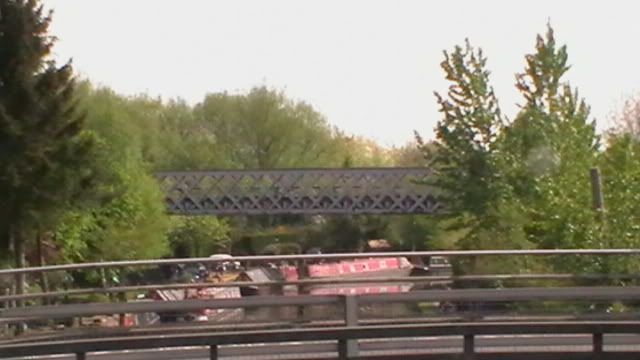

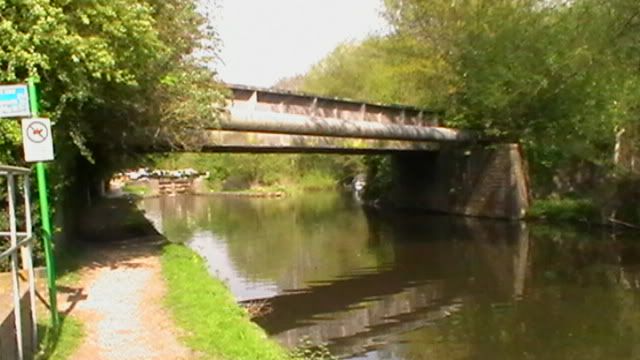

Turning around 180*, we see the bridge of the Croxley Branch spanning the GUC as well. If the Croxley Rail Link project ever goes through, this bridge will carry the Met. Line to Watford Junction, and the other viaduct and Watford Met. Station will be made redundant.

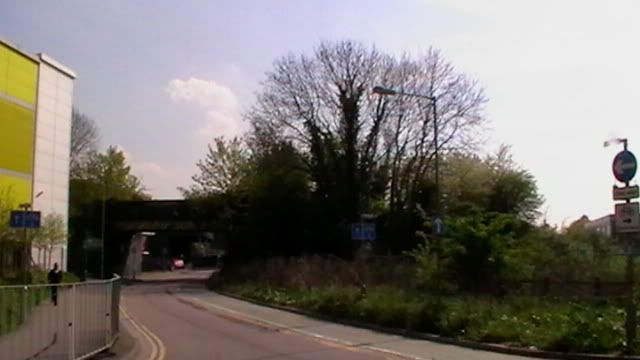

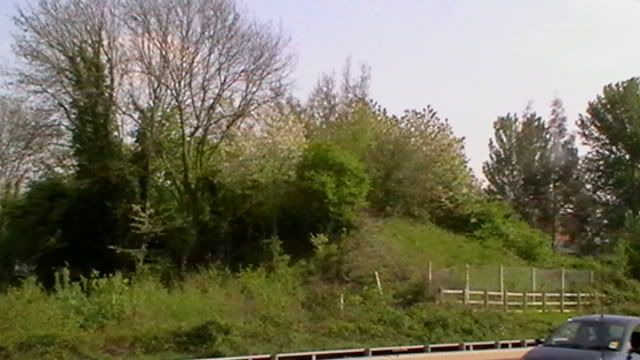

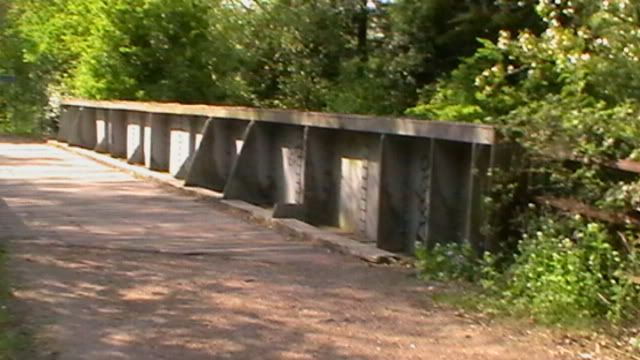

The gap caused by the road to Croxley Industrial Estate. This is the largest missing chunk of the Croxley Branch. The Bridge is still in good condition though.





We now leave the Croxley Green Branch, and we head towards the Ricky Branch.

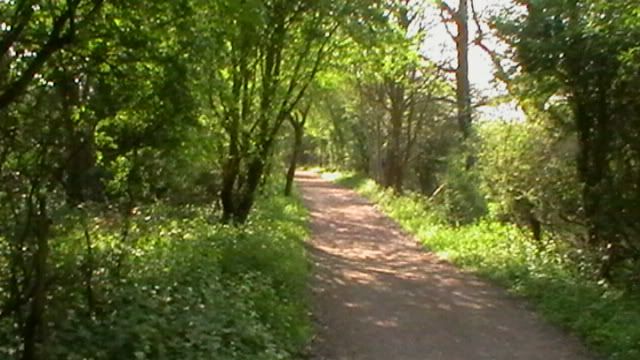

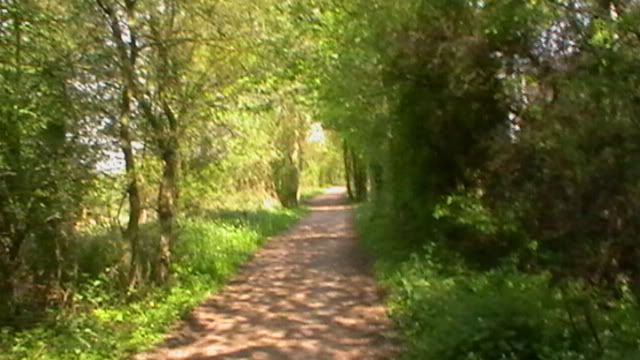

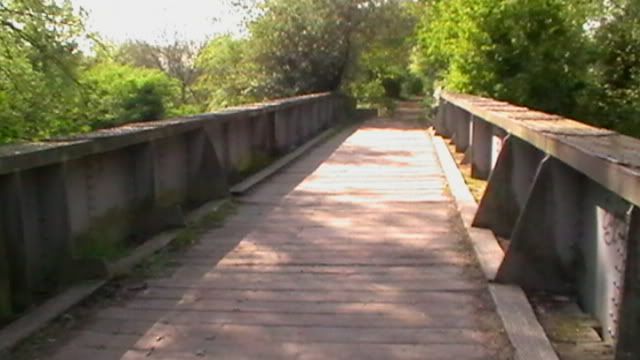

The route is fairly typical of such disused-now-cycle-route lines.


The Met. Line passing over the Ricky Branch. My chain fell off here, I spent 10 minutes trying to put it back on again...

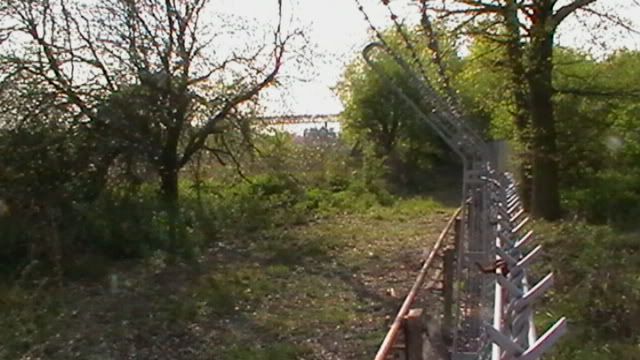

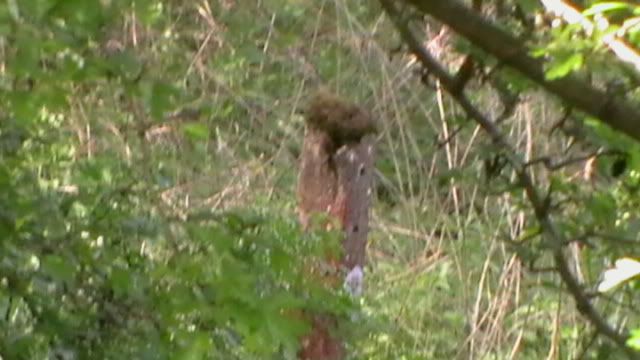

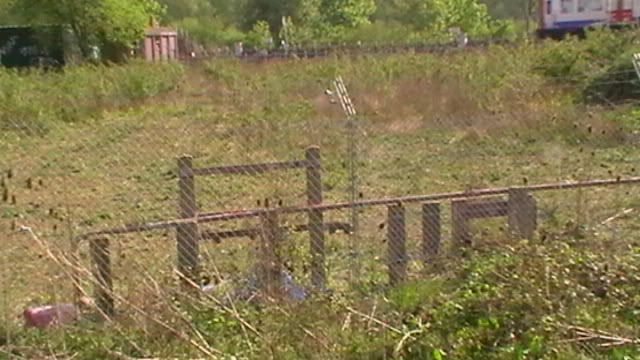

Original fenceposts alongside the old line.

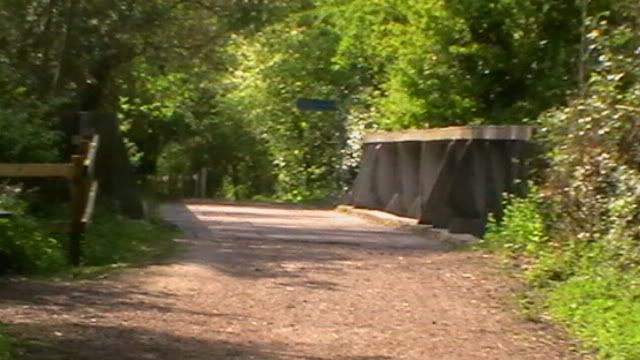

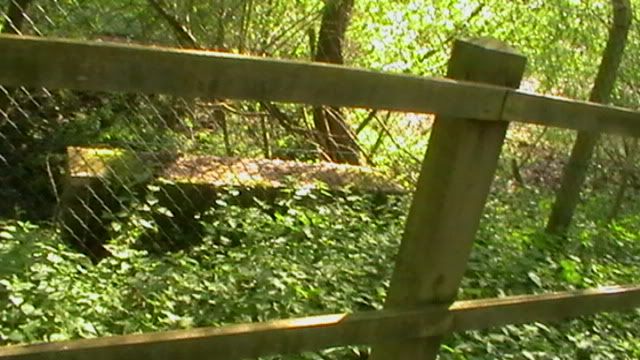

A small bit of wall bridging a tiny damp ditch.

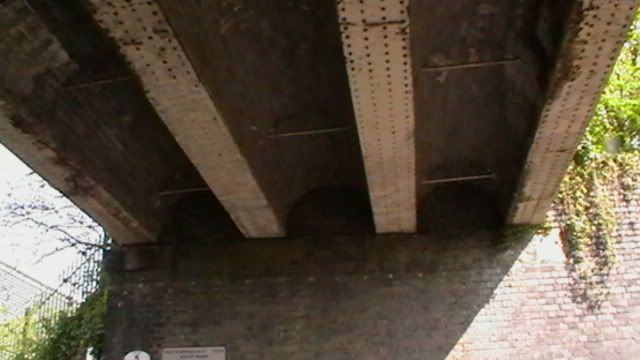

The Ricky Branch bridge over the Met. (170B).

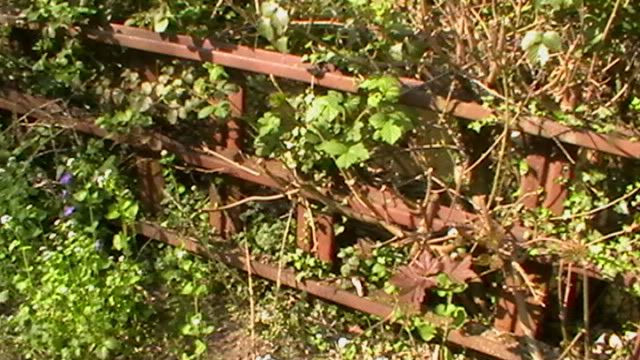

What looks like the old rails being recycled into some sort of fence...


Looking towards the Met. Line over the GUC from the Ricky bridge.

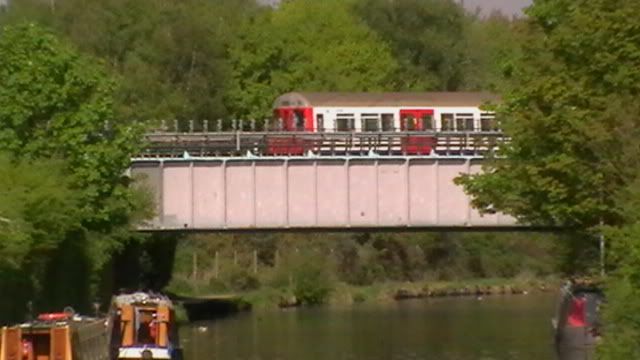

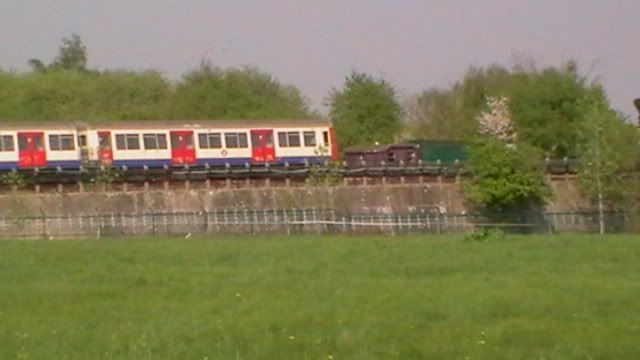

An A60 unit passing over the Met. Bridge (170A).

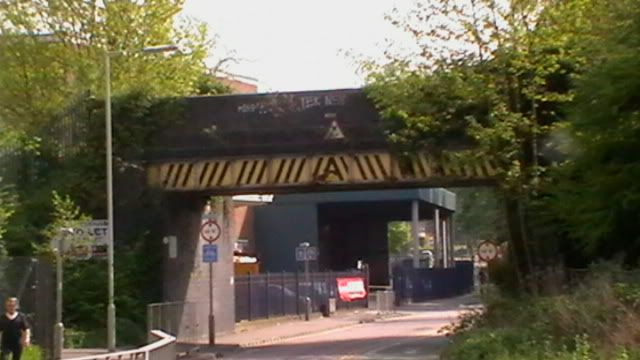

The building in the Watford Triangle. I'm not entirely sure what its purpose is.

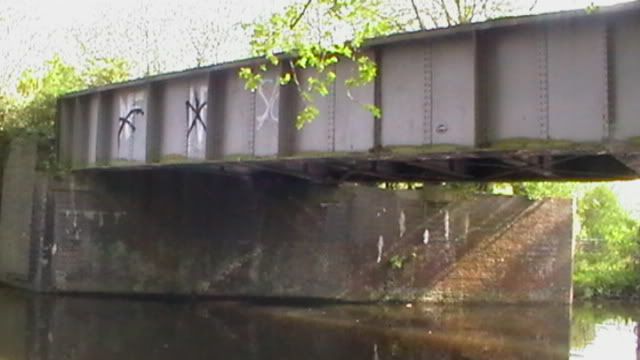

Met. Line Bridge over the GUC again.


An A60 unit.

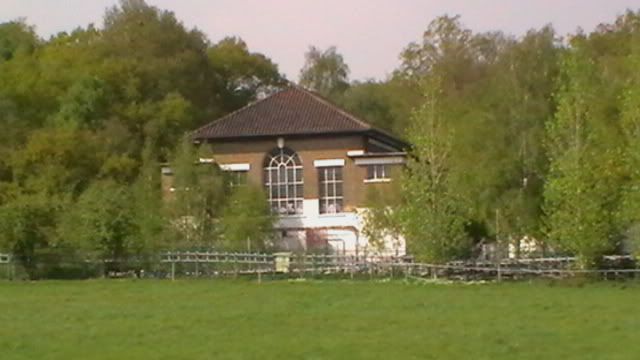

Moving onto Croxley Tip. A hut.

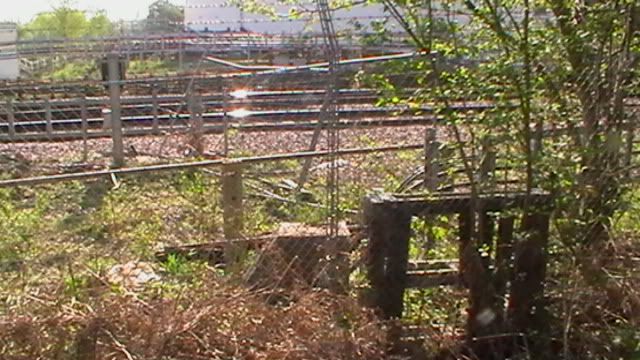

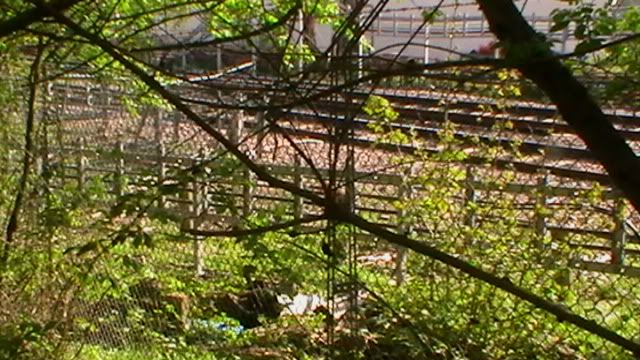

Remains of the sides of the railway part of the Tip.

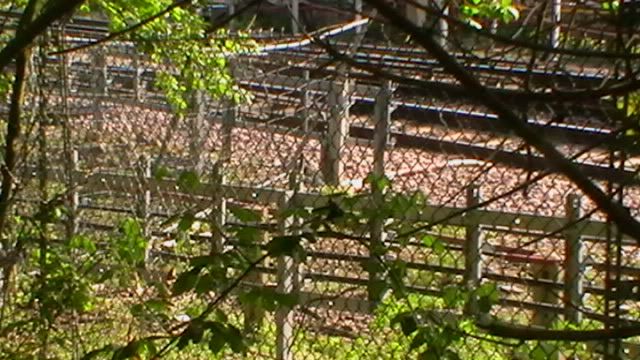

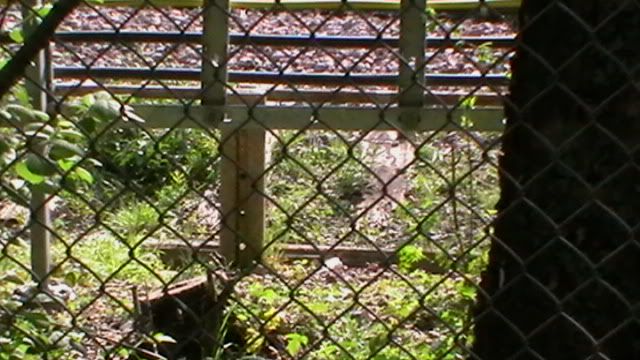

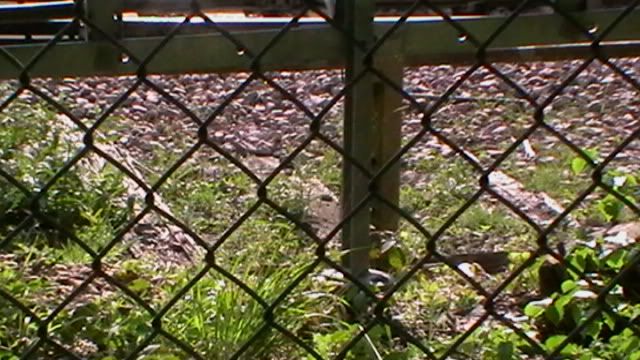

The following aren't brilliantly clear, as I was taking photos through fencing, it is however the entrance to the Tip. If you look carefully you can see the sleepers still in place.





The entrance to Croxley Tip, as seen from the Watford-Baker Street part of the triangle.

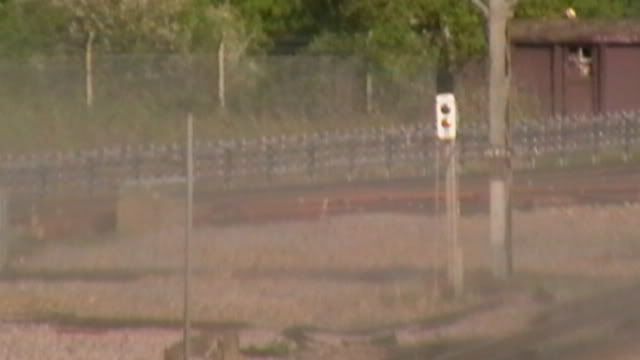

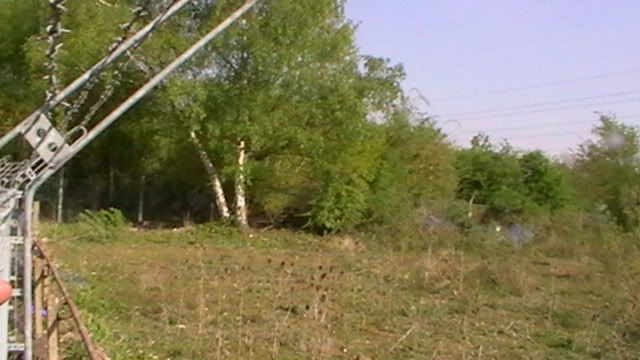

Some sort of structure on the site of the Tip. I reckon it has been built since the Tips closure.

Where the rails would have been coming from the entrance.

Looking in the opposite direction to the above.

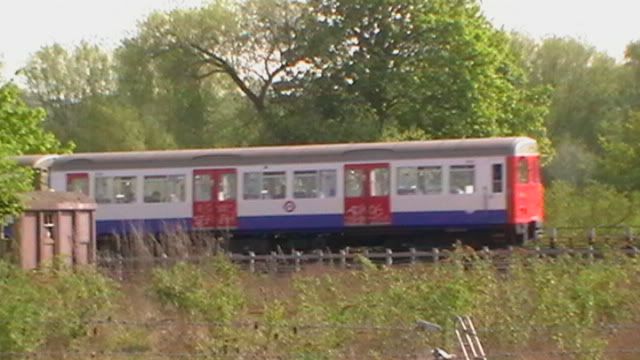

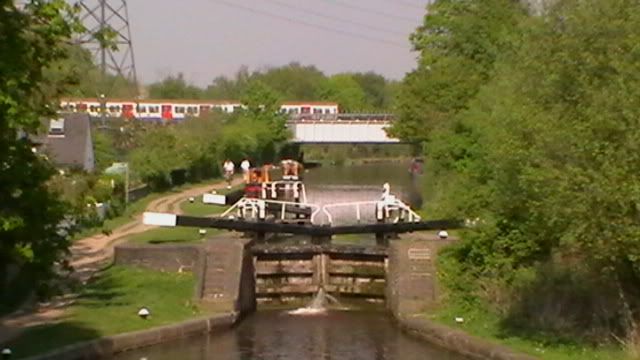

Back on the Canal, an A60 passes, with the site of Croxley Tip behind the train.

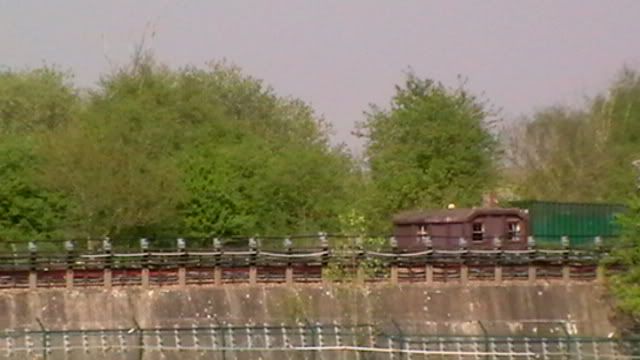

The hut from the other side, taken from the canal.

The hut again but a bridge spanning the mainline.

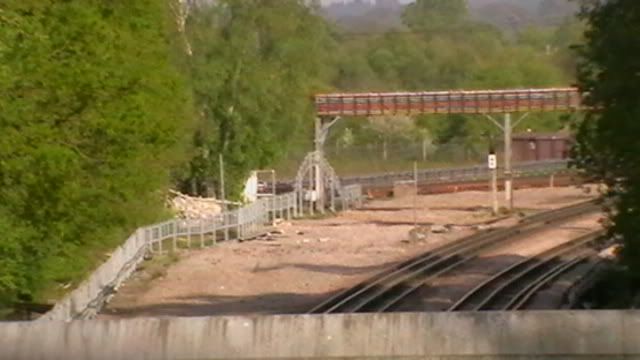

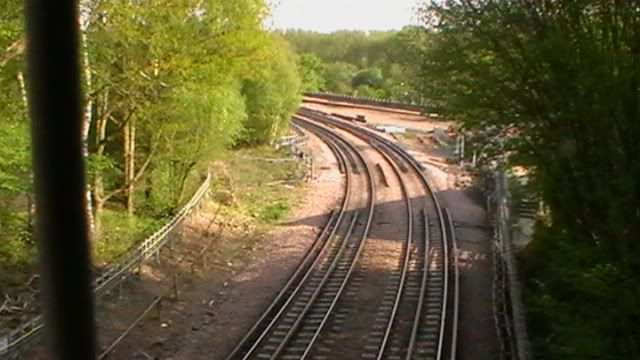

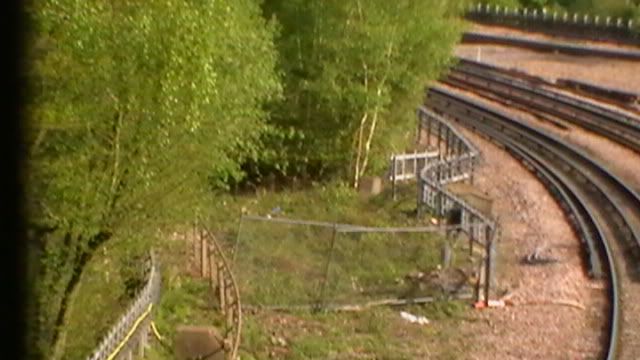

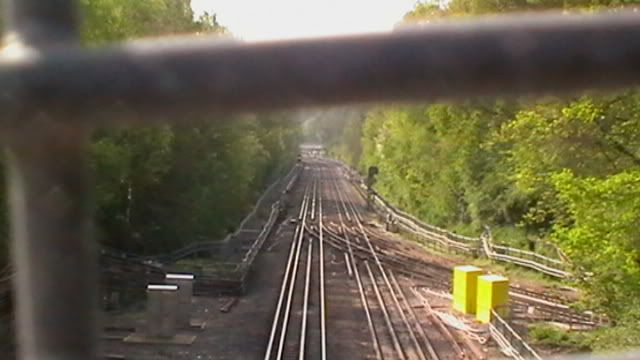

From the bridge spanning the mainline. Looking to where the Watford-Baker Street part of the Triangle joins the mainline.

Looking the opposite way, to where the Watford-Rickmansworth part of the triangle joins the mainline. I don't think this is used anymore, since I am sure the Ricky-Watford shuttle service no longer runs.

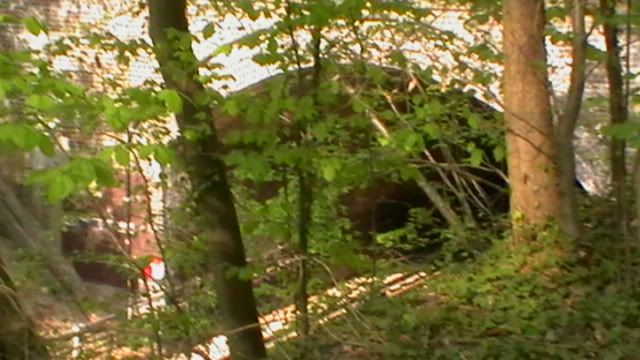

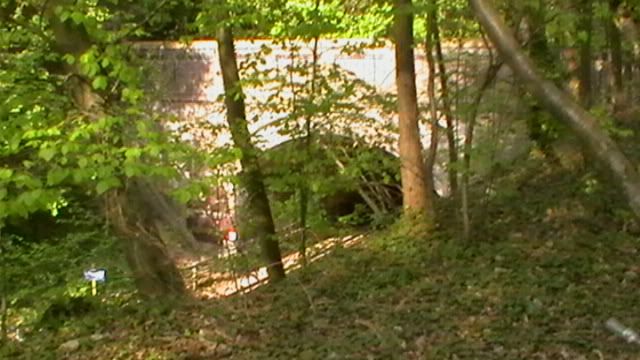

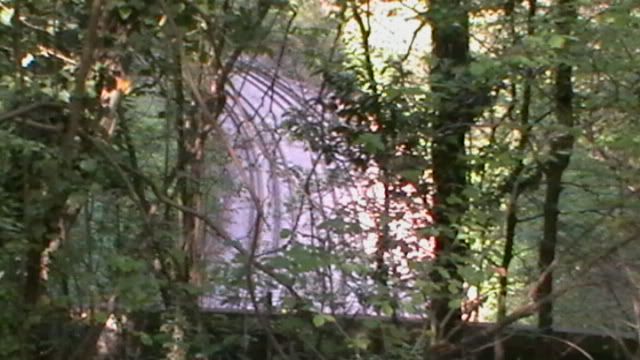

On the Watford-Ricky part of the Triangle. A tunnel...


And the tunnels exit...

Some beautiful bluebells...

And one of those funny things I have forgotten the name of...

That is all the photos I took, missed quite a bit, but after falling into a barbed wire fence and piercing my hand, I thought it best to visit my brother and get off home asap!

I hope you have found this interesting, hopefully I shall be doing a similar such thing in due course.
