Re: 3D Printing –Met Chesham Coaches, 4mm/OO, GN Saloon.

Postby mattmay05 » Tue Oct 14, 2014 12:24 am

Thanks for the comment yes it's quite remarkable what can be done now, even with a Homeprinter which is something I am now looking at after receiving a few samples from a printer manufacturer.

User avatar
flying scotsman123
Posts: 1835
Joined: Thu Jan 12, 2012 5:29 pm
Location: err, down there round the corner... not that one!!!

Re: 3D Printing –Met Chesham Coaches, 4mm/OO, GN Saloon.

Postby flying scotsman123 » Wed Jan 14, 2015 7:38 pm

Hi Matt,

Sorry to drag this up again (You never know, might get you some publicity) not even sure if you're on here any more as I can't tell by looking at your profile.

I've been looking into a spot of 3D printing, or at least having a go at the CAD. I've been using Google sketch-up which I note you used for the LBSCR Van but not the coaches, but not for the Mets. You mentioned there was some detail Sketch-up could't deal with, but what was it?

Also, I think I know how to draw everything in sketch up, apart from one particular thing. I can do the beading on both curved and flat surfaces, but the rounded corners I can't work out how to do on the curved plane at the bottom of the coach. How did you draw this part?

Many thanks, and, having read through this thread again your work still amazes me. :)
"listen carefully, i shall say this only once"


User avatar
mattmay05
Posts: 1866
Joined: Wed Dec 12, 2007 4:16 pm
Location: Isle Of Wight
Contact:

Re: 3D Printing –Met Chesham Coaches, 4mm/OO, GN Saloon.

Postby mattmay05 » Wed Jan 14, 2015 7:48 pm

Google sketchup is limited by what it can do, for example if you want to draw a coach to Scale 1:1 no problem, but if you want to draw it to OO size it won't do it, because it won't allow you to do small details, rivets, small circles, small holes ect...
Also the tumble home you are referring to which curves from the middle to the base, yea it won't do that either, the LBSC van was drawn to twice the size of an OO model to allow it to do the curve... same problem with the Metropolitan coaches as not only did the sides have a curve the ends did to which Sketchup also won't do.

User avatar
flying scotsman123
Posts: 1835
Joined: Thu Jan 12, 2012 5:29 pm
Location: err, down there round the corner... not that one!!!

Re: 3D Printing –Met Chesham Coaches, 4mm/OO, GN Saloon.

Postby flying scotsman123 » Wed Jan 14, 2015 7:58 pm

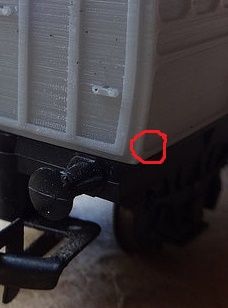

Thanks for the speedy reply! Yes I know Sketch-up doesn't like things being too small, but as you say, if you draw things full size, or at least larger by a known factor you can then reduce it at the end and it won't put up much of a fight. I can't seem to work out how to do the rounded beading corner on the bottom curved surface in any scale at the moment! I've circled the bit I'm having trouble reproducing on one of your pictures:


As I said, I can do the straight lines vertical and horizontal on the curved plane, and draw the rounded corner on the curved plane, but can't work out how to make it 3D as of course you can't push/pull it, even with a special plug-in I downloaded it doesn't work. (on the flat it's easy of course).
"listen carefully, i shall say this only once"


User avatar
mattmay05
Posts: 1866
Joined: Wed Dec 12, 2007 4:16 pm
Location: Isle Of Wight
Contact:

Re: 3D Printing –Met Chesham Coaches, 4mm/OO, GN Saloon.

Postby mattmay05 » Thu Jan 15, 2015 12:58 am

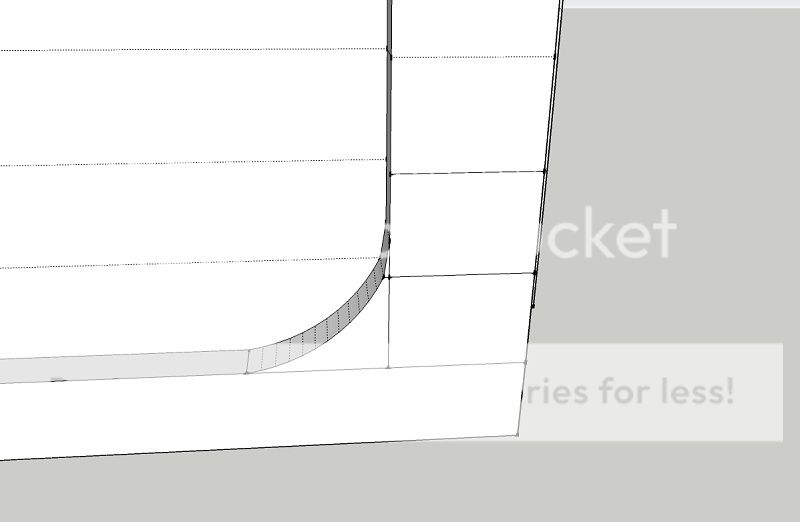

It was drawn as basically a 90 degree corner and the curved section drawn in afterwards all walls behind this were removed as the model would be rejected for printing.


User avatar
mattmay05
Posts: 1866
Joined: Wed Dec 12, 2007 4:16 pm
Location: Isle Of Wight
Contact:

Re: 3D Printing –Met Chesham Coaches, 4mm/OO, GN Saloon.

Postby mattmay05 » Fri May 01, 2015 6:03 pm

I am looking for your vote, I have entered a small competition with the 4 Metropolitan Coaches which are fully 3D printed, so all I ask is for your Vote, which you can login to the website using facebook and twitter, if you could vote that would be great and I very much appreciate it.

http://www.instructables.com/id/Model-Railway-Metropolitan-Railway/

User avatar
skyblue
Posts: 1745
Joined: Sat Aug 18, 2012 11:17 am

Re: 3D Printing –Met Chesham Coaches, 4mm/OO, GN Saloon.

Postby skyblue » Fri May 01, 2015 6:09 pm

I have tried to vote but pressing the vote button didn't seem to do anything despite being signed into the site. I hope you win - you really deserve it with all the work you've put into this.

User avatar
mattmay05
Posts: 1866
Joined: Wed Dec 12, 2007 4:16 pm
Location: Isle Of Wight
Contact:

Re: 3D Printing –Met Chesham Coaches, 4mm/OO, GN Saloon.

Postby mattmay05 » Fri May 01, 2015 6:41 pm

It doesn't do much when you do press vote, if you go to click vote again it will have Contest entry, and a box which says Undo.. where you can reverse your vote.

User avatar
mattmay05
Posts: 1866
Joined: Wed Dec 12, 2007 4:16 pm
Location: Isle Of Wight
Contact:

Re: 3D Printing –Met Chesham Coaches, 4mm/OO, GN Saloon.

Postby mattmay05 » Wed Jun 24, 2015 10:47 pm

New item soon to be available through me.


Atso
Posts: 128
Joined: Thu Aug 24, 2006 2:07 pm

Re: 3D Printing –Met Chesham Coaches, 4mm/OO, GN Saloon.

Postby Atso » Wed Jun 24, 2015 11:23 pm

Nice! Imaterize 'Prime Grey' by any chance?

Wasn't the original scratchbuilt? Both look great!
Steve

User avatar
mattmay05
Posts: 1866
Joined: Wed Dec 12, 2007 4:16 pm
Location: Isle Of Wight
Contact:

Re: 3D Printing –Met Chesham Coaches, 4mm/OO, GN Saloon.

Postby mattmay05 » Wed Jun 24, 2015 11:29 pm

No not this time Steve :) I use private independent printers in the UK, its cheaper and quicker, this was done using a FormLabs Form 1+ SLA based grey resin. The clearer material is a shapeways product.

Yes that's correct original was scratch built, I remember people wanted one so now eventually people can, it's certainly got around a bit, had a part in a film won a magazine competition or 2, so good pedigree the 3D prints follow :)

Atso
Posts: 128
Joined: Thu Aug 24, 2006 2:07 pm

Re: 3D Printing –Met Chesham Coaches, 4mm/OO, GN Saloon.

Postby Atso » Wed Jun 24, 2015 11:33 pm

Not bad going! Good luck and I hope it does well for you.

Speaking of 3D printing, one of my own efforts in the testing stages...

Steve

User avatar
mattmay05
Posts: 1866
Joined: Wed Dec 12, 2007 4:16 pm
Location: Isle Of Wight
Contact:

Re: 3D Printing –Met Chesham Coaches, 4mm/OO, GN Saloon.

Postby mattmay05 » Wed Jun 24, 2015 11:39 pm

Ahh yes I thought I recognized the name... RMweb/LNER forum, yes follow your topic every time I pass through some impressive work Steve, I have played about with it for a number of years, this one is the last one for a while as no money at the moment due to no job, so decided to put what I had left in to that to get it finished and out there.

Atso
Posts: 128
Joined: Thu Aug 24, 2006 2:07 pm

Re: 3D Printing –Met Chesham Coaches, 4mm/OO, GN Saloon.

Postby Atso » Thu Jun 25, 2015 12:05 am

Yup that's me and thanks!

I know how the unemployment situation feels, I haven't earnt anything since October last year and I too am putting what little I have left into projects like yours. Good luck with it all! :)
Steve

User avatar
mattmay05
Posts: 1866
Joined: Wed Dec 12, 2007 4:16 pm
Location: Isle Of Wight
Contact:

Re: 3D Printing –Met Chesham Coaches, 4mm/OO, GN Saloon.

Postby mattmay05 » Fri Jan 08, 2016 10:36 pm

Hi all

Over the last few months the Captain Baxter 3D prints have been selling rather well, quite a few to Bluebell members, one of which maybe on display in June at the model rail event on the Bluebell. Also doing quite well have been the LBSC perishable goods van.

I have had several incomplete 3D models which required a lot of time to finish and get right in order for them to printed.
One that had been sitting round the longest was a body shell for the LDCR brake 3rd, or second depending which period your modelling.
It has been designed to fit a rtr chassis.


http://www.shapeways.com/shops/Bluebellmodelrailwayshop
