SWD sound chip Class 24

Postby peak » Sat Jan 12, 2008 4:11 pm

SWD class 24 sound chip.

The package.
Package arrived when they said it would.
Product well packed.
10/10

Wot’s in the package.
Having opened the package found the chip with speaker plus a (I assume) sound chamber packed in an ESU box.
Also included was a manual from ESU plus a letter from SWD explaining how the chip worked.
However no detailed instruction on fitting to a Bachmann class 24
8/10


Installation.

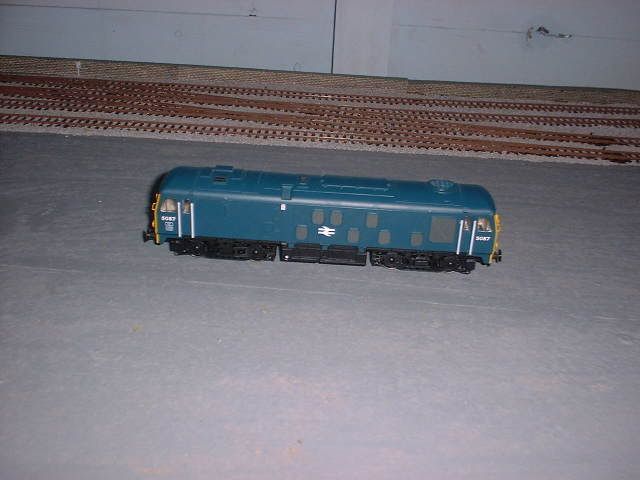

The loco to be used is an 18-month-old Bachmann class 24.


First remove the body from the chassis by removing the 4 screws from the under side as per Bachmann instructions.

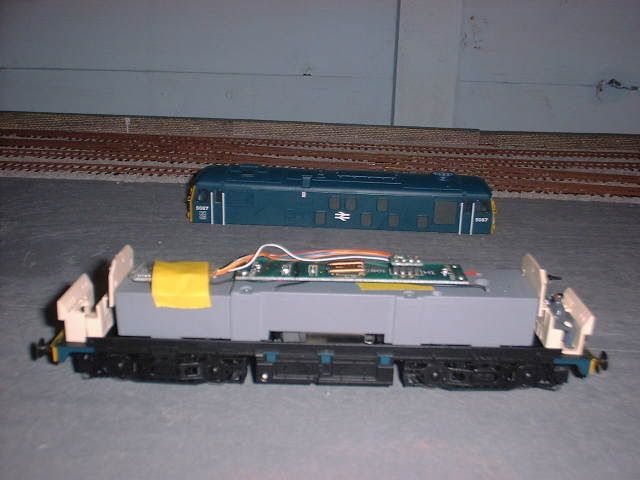

I then removed the Bachmann 3 function chip that the loco had been running on.
This was fixed in by the 8-pin plug.
I then tried to decide where to put the speaker.
I did a test run of the chip with it all lying loose on the chassis.
Every thing worked fine but it was obvious that the speaker must be fitted in the sound chamber for best results.
I had wanted to fit the speaker under the fan but there is not enough room.
I rejected the idea of cutting the chassis weight down to accommodate the speaker as to big a job for me!
So in the tanks under the loco was the next best option.

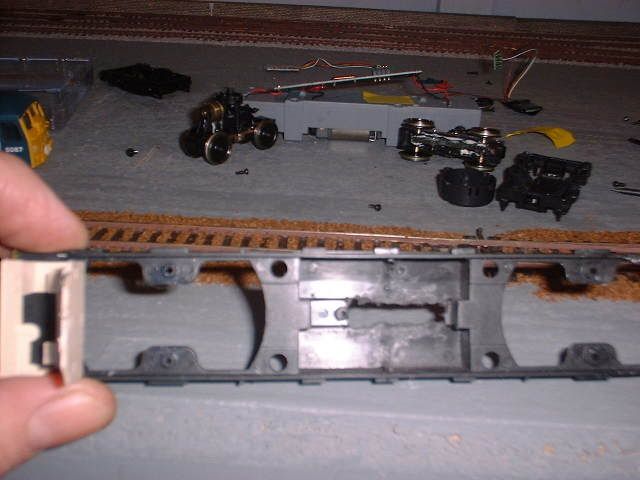

The lower frame of the loco was removed from the chassis by first removing the bogies from the wheel towers and then removing the 4 screws that held the lower frame in place.


I then removed the weight from the inside of the tanks and removed the inner ribbing with a Dremmel fitted with a milling cutter.
To let the sound out, I cut a slot along the under side of the tanks.

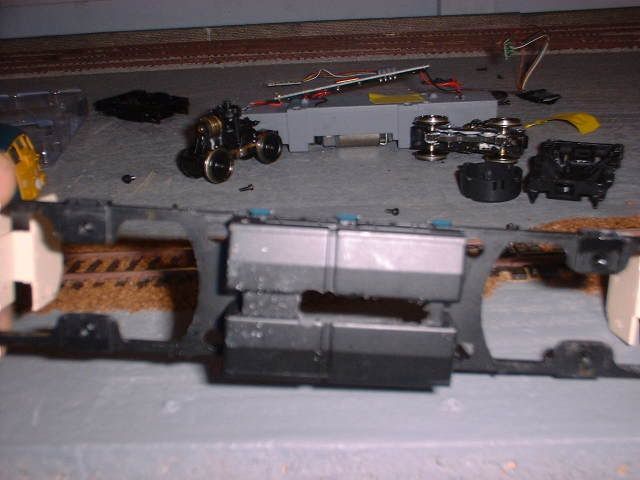

The speaker and sound chamber were constantly offered up as progress was made until it was a snug fit.


Now it was time to rebuild the loco. This is a simple procedure of reversing the disassembly. Care must be taken with the speaker wires. I routed them up the outside of the chassis as there is a recess, which the wire’s fitted into nicely.
The chip comes fitted with an 8-pin plug, which is a push fit into the socket on the loco.


The body was then replaced.
Job done.
8/10

Running the loco.
It must be said the sounds are just fantastic and much better than you hear on the web!
Running of the loco on the SWD preset settings is very smooth but acceleration to full speed takes about 20 seconds, as does deceleration.
Pressing f1 starts the engine and soon there’s the clatter of a sulzer engine ticking over.
Add power and the engine revs up prior to the loco pulling away and as this happens the revs drop and then pick up again just like the real thing.
There are two horn settings, buffer up noise, coupling noise, air tank hiss, brake noise and also wheel flange squeal and when you have finished with it the loco shut’s down.
10/10

Over view.
A little bit more work than I had hoped, But no soldering.
The single round speaker is quite adequate for my use.
The result is well worth the effort.
All my loco's will be fitted with sound chips when funds are available.
Excellent product from SWD
9/10
2 trains, 2 railroad tracks, one going the other one coming back. Click Clack, Click Clack.
Regards
Andy

http://www.brblue.co.uk

User avatar
Chuffer Chuff
Posts: 528
Joined: Tue Aug 28, 2007 6:55 pm
Location: Warwickshire, West Midlands (Near The GWSR)

Postby Chuffer Chuff » Sat Jan 12, 2008 6:39 pm

Excellent Review Peak! :D

I found it very interesting and well done!
"You only get one chance in life, so make the most of it!"

User avatar
piemanlarger
Posts: 158
Joined: Sat Apr 21, 2007 9:30 pm
Location: Skewen

Postby piemanlarger » Wed Jan 16, 2008 11:09 pm

It seems like a reasonably straigh forward fit. I would not have cut the long channel you have though as if the loco passes over small metal objects ( Loose Track pins) it may well pick them up through the large slot and they may damage the speaker.
I would have drilled a series of 1.5 / 2 ml holes in a roundish pattern about the size of the speaker.
I would also have fitted another speaker as I have not yet done an istallation that did not sound better with two speakers. If it works for you though, well done.
A loco with no sound chip? Might as well be unpainted!
EWS sound loco depot viewtopic.php?f=22&t=7263
Olivers Road RMD viewtopic.php?f=22&t=18867&start=30

User avatar
peak
Posts: 904
Joined: Mon Dec 11, 2006 9:39 pm
Location: Birmingham
Contact:

Postby peak » Wed Jan 16, 2008 11:38 pm

I have already learnt the lesson of the slot as the speaker has already lifted a small rod of steel left lying about.

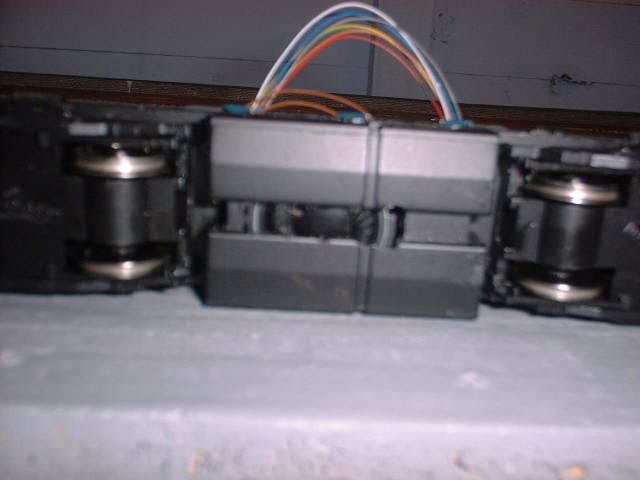

As you can see from the last pic there is not enough room for a second speaker in the tanks? unless there are smaller speakers available?
2 trains, 2 railroad tracks, one going the other one coming back. Click Clack, Click Clack.

Regards

Andy



http://www.brblue.co.uk

User avatar
piemanlarger
Posts: 158
Joined: Sat Apr 21, 2007 9:30 pm
Location: Skewen

Postby piemanlarger » Thu Jan 17, 2008 9:10 am

peak wrote:I have already learnt the lesson of the slot as the speaker has already lifted a small rod of steel left lying about.
As you can see from the last pic there is not enough room for a second speaker in the tanks? unless there are smaller speakers available?


Probably the tank was not an option i would go for, i would look at under the fan.
A loco with no sound chip? Might as well be unpainted!
EWS sound loco depot viewtopic.php?f=22&t=7263
Olivers Road RMD viewtopic.php?f=22&t=18867&start=30

User avatar
peak
Posts: 904
Joined: Mon Dec 11, 2006 9:39 pm
Location: Birmingham
Contact:

Postby peak » Thu Jan 17, 2008 6:44 pm

piemanlarger wrote
Probably the tank was not an option i would go for, i would look at under the fan.

I found there was not enough room under the fan?
I removed the fan assy.
But I noted that there is a raised section in the moulding around the fan, but I still think there is not enough room if the speaker is fitted in it's ESU plastic sound chamber.
I noted the difference between fitting the sound chamber and not fitting it was amazing!
2 trains, 2 railroad tracks, one going the other one coming back. Click Clack, Click Clack.

Regards

Andy



http://www.brblue.co.uk

User avatar
piemanlarger
Posts: 158
Joined: Sat Apr 21, 2007 9:30 pm
Location: Skewen

Postby piemanlarger » Thu Jan 17, 2008 10:15 pm

peak wrote:piemanlarger wrote
Probably the tank was not an option i would go for, i would look at under the fan.

I found there was not enough room under the fan?
I removed the fan assy.
But I noted that there is a raised section in the moulding around the fan, but I still think there is not enough room if the speaker is fitted in it's ESU plastic sound chamber.
I noted the difference between fitting the sound chamber and not fitting it was amazing!


What speaker & enclosure were you trying to fit?
A loco with no sound chip? Might as well be unpainted!
EWS sound loco depot viewtopic.php?f=22&t=7263
Olivers Road RMD viewtopic.php?f=22&t=18867&start=30

User avatar
peak
Posts: 904
Joined: Mon Dec 11, 2006 9:39 pm
Location: Birmingham
Contact:

Postby peak » Thu Jan 17, 2008 10:51 pm

piemanlarger asked
What speaker & enclosure were you trying to fit?

All I can say is that it was the one that came with the pack!
Didn't measure it!
2 trains, 2 railroad tracks, one going the other one coming back. Click Clack, Click Clack.

Regards

Andy



http://www.brblue.co.uk

m.levin
Posts: 1981
Joined: Mon Jan 09, 2006 6:46 pm

Postby m.levin » Thu Jan 17, 2008 10:54 pm

when are we going to get a video of it?

User avatar
piemanlarger
Posts: 158
Joined: Sat Apr 21, 2007 9:30 pm
Location: Skewen

Postby piemanlarger » Fri Jan 18, 2008 12:23 am

peak wrote:piemanlarger asked
What speaker & enclosure were you trying to fit?

All I can say is that it was the one that came with the pack!
Didn't measure it!


The 23 ml round one then.
Perhaps you should try Dcc suplies modified 20x40.
There are a bit slimmer and may fit?
A loco with no sound chip? Might as well be unpainted!
EWS sound loco depot viewtopic.php?f=22&t=7263
Olivers Road RMD viewtopic.php?f=22&t=18867&start=30

User avatar
peak
Posts: 904
Joined: Mon Dec 11, 2006 9:39 pm
Location: Birmingham
Contact:

Postby peak » Mon Jan 28, 2008 5:38 pm

At last I have loaded some video's of the class 24 with sound!
Enjoy!!!



2 trains, 2 railroad tracks, one going the other one coming back. Click Clack, Click Clack.

Regards

Andy



http://www.brblue.co.uk

User avatar
Chuffer Chuff
Posts: 528
Joined: Tue Aug 28, 2007 6:55 pm
Location: Warwickshire, West Midlands (Near The GWSR)

Postby Chuffer Chuff » Mon Jan 28, 2008 5:46 pm

Superb video's there Andy! It sounds superb! :wink:
"You only get one chance in life, so make the most of it!"

User avatar
headshot119
Posts: 311
Joined: Sun Feb 11, 2007 3:47 pm

Postby headshot119 » Sun Feb 03, 2008 6:10 pm

Great vids, and nice sounds, in fact fantastic sounds.
