NRM Article - Making cheap, easily shaped, easy rock faces!

Postby Mikol » Mon Aug 14, 2006 2:15 pm

So you want to make a realistic rock face? Is finding cork bark too difficult or expensive? Am I starting to sound like an insurance salesman?

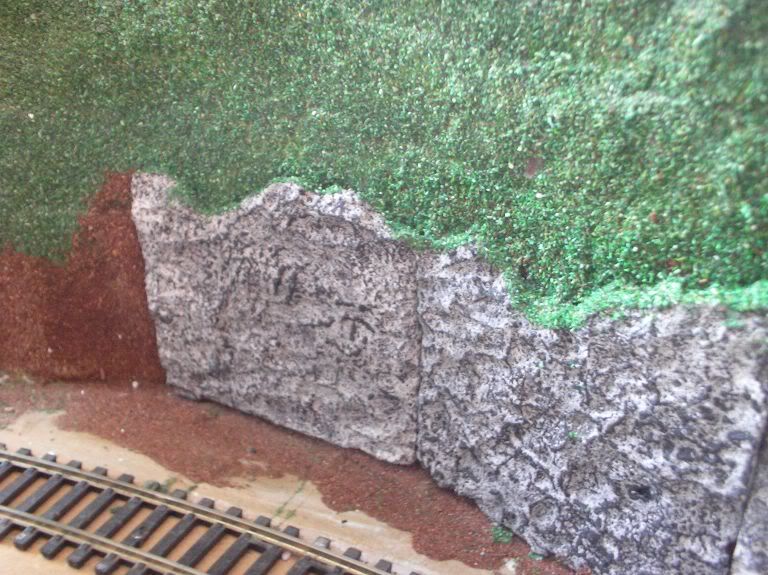

Regardless, this is the end result, made for less than a penny:

With the application of a bit of scenic scatter and foliage along the top and bottom, the effect is quite convincing.

So you want to know how to do it?

Well, to begin, this is what you'll need:

* Some Expanded polystyrene, the stuff used to package trains
* A Hacksaw or stanley knife
* A Soldering Iron
* White poster paint
* Black enamel paint
* A paintbrush


First, grab your polystyrene and cut off a (or a number of) thin slivers with either a hacksaw or a knife. Keep in mind the size of the gap you are going to fill.

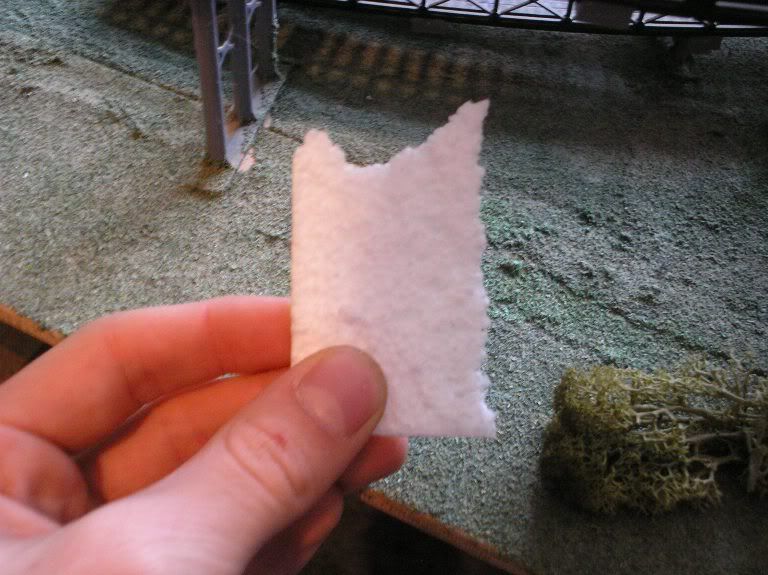

Your sliver should look something like this:

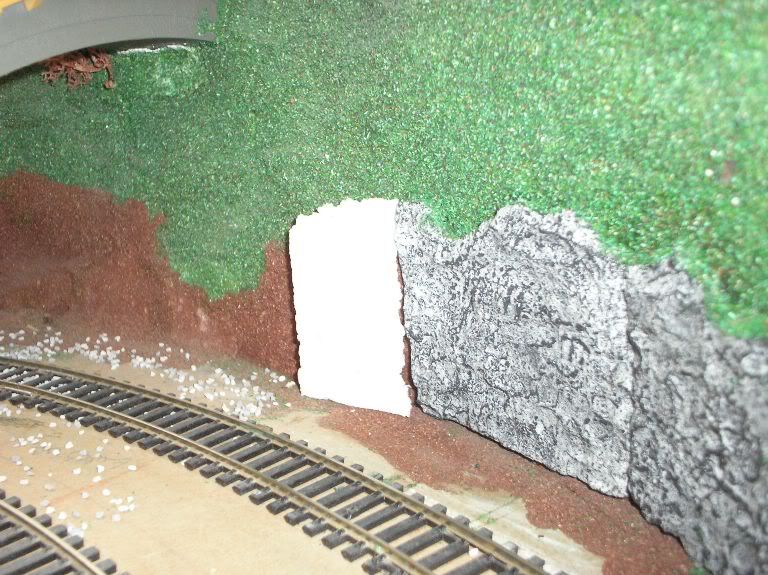

Now put it into your gap to check the fit, and line it up with other rock faces, or other scenic features.

Now we know it fits, it pays to break off some of the top to make the shape more random, as I'm yet to see a perfectly rectangular rock face. Don't worry about neatness here, just as long as you don't tamper with the edges you've just lined up.

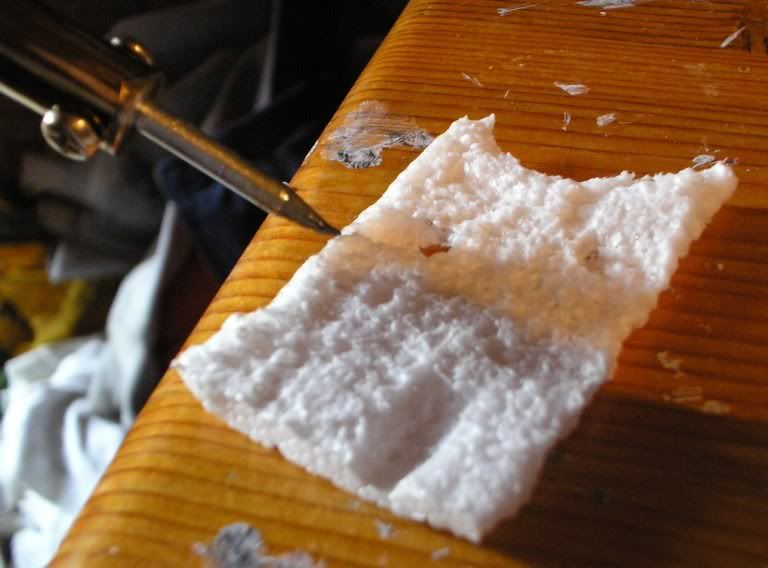

Now, to the tricky part: the soldering. For this it's best you use a VERY well-ventilated room, i suggest a garage with the back door flung open, or if it's a nice day do it outside. When the soldering iron is hot, gently sweep across the polystyrene to melt the surface. The fumes are PROBABLy toxic, so it's not recommended to breathe them in, so try to avoid this. When you've got the soldering iron you can be quite artistic and follow your own path for this bit. Just use the tool like a pencil and carve various shapes and formations into the rock. Remember that the polystyrene is thin, so don't press too hard, but if you do, a suitable 'filler' piece can be made quite easily.

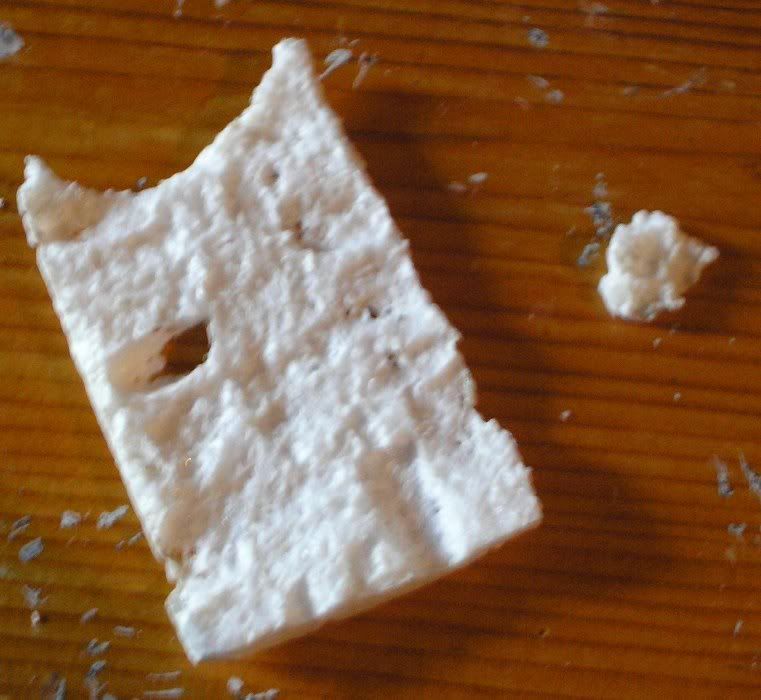

And here's my finished piece. I managed to burn right through so you can see the filler piece i made to fix to the back, covering the hole.

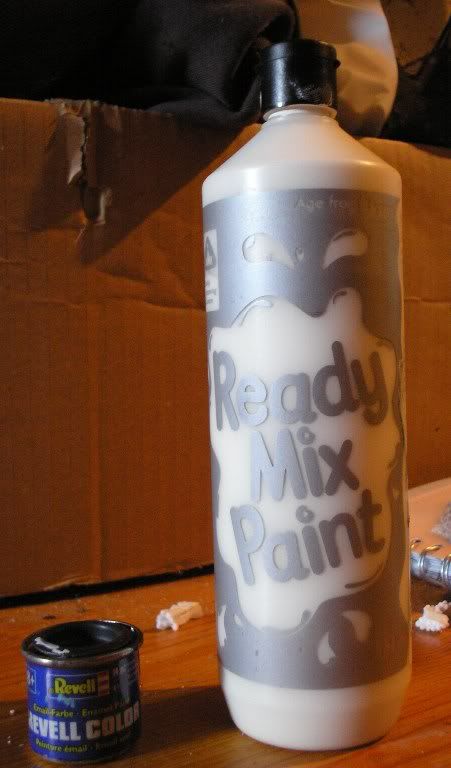

Next, to the paint. For this it's best to mix white poster paint and black enamel paint. These two won't mix properly, but this is good because it will give the rock a weathered, more realistic texture which really brings the rock to life.

Mix them around but don't be too worried if they aren't completely mixed, rocks often look better darker in places and lighter in others!

Apply the paint liberally so that there is no white visible. You don't need to paint the back but in my experience it pays to paint the top and sides as these may become visible when placed on the layout.

Viola! One painted rock face. This will take a few hours to dry, as although the poster paint dries relatively quickly, the nature of the enamel paint and the mixture means it takes longer.

Once dry, the rock face can be fixed in placed with wood glue, pva or hob-e-tac, just steer clear of superglue, which will melt your rockface and half an hours work into a sticky mess. When in position, apply some scenic scatter to the top to make the rock face seem 'integrated' into the hill, and make it look less like someone's just stuck it there!

Some scenic scatter at the bottom to hide any gaps completes the illusion. And all this for absolutely nothing! (well, except the scatter, glue and foliage but hey, it sounded good) Have fun!

Copyright Michael Rhodes 2006
If you want to copy or reproduce any of this document, please seek my permission by e-mailing me at mich_inda_house@hotmail.com
Last edited by Mikol on Mon Dec 04, 2006 3:50 pm, edited 1 time in total.

User avatar
andrewteenagemodeller
Posts: 62
Joined: Sat Jul 01, 2006 8:19 pm
Location: Stirling, Scotland

Postby andrewteenagemodeller » Mon Aug 14, 2006 4:43 pm

Wow brilliant article Michael :)
Andrew

User avatar
Ijdagger
Posts: 380
Joined: Tue Jan 10, 2006 10:19 am
Location: Barnstaple Devon
Contact:

Postby Ijdagger » Mon Aug 14, 2006 6:08 pm

Looks good and a very informative article, may use your advice at a lter stage.

Thankyou

User avatar
mortyfootball
Posts: 884
Joined: Wed Feb 01, 2006 8:39 pm
Location: Newcastle upon Tyne, England UK

Postby mortyfootball » Mon Aug 14, 2006 8:40 pm

Very good, well done. Why not add a rockfall too?

Shaun
Currently on the rails with my camera

User avatar
Mikol
Posts: 225
Joined: Thu Jul 13, 2006 5:29 pm
Location: Luton, UK
Contact:

Postby Mikol » Tue Aug 15, 2006 10:14 am

mortyfootball wrote:Very good, well done. Why not add a rockfall too?

Shaun


yup, the same method could be used to make boulders too i guess. Might give that a try!

I'm making some more today hopefully so i should be able to update the blurry pictures!

User avatar
Mikol
Posts: 225
Joined: Thu Jul 13, 2006 5:29 pm
Location: Luton, UK
Contact:

Postby Mikol » Wed Aug 16, 2006 2:17 pm


User avatar
Mikol
Posts: 225
Joined: Thu Jul 13, 2006 5:29 pm
Location: Luton, UK
Contact:

Postby Mikol » Sun Sep 17, 2006 7:42 pm

Some new pictures of how the rock faces look finished with all scenic trimmings applied:




:D:D

User avatar
mortyfootball
Posts: 884
Joined: Wed Feb 01, 2006 8:39 pm
Location: Newcastle upon Tyne, England UK

Postby mortyfootball » Sun Sep 17, 2006 7:44 pm

Nice one Michael!

Shaun
Currently on the rails with my camera

User avatar
Class 60
Posts: 1131
Joined: Wed Apr 12, 2006 4:34 pm
Location: Port Talbot, South Wales
Contact:

Postby Class 60 » Sun Sep 17, 2006 7:50 pm

Looking Good 8)

Danny
Posts: 425
Joined: Sun Feb 26, 2006 12:39 pm
Location: Great Britain
Contact:

Postby Danny » Sun Sep 17, 2006 8:05 pm

Well done! You have done the rocks so well it makes the bridge look out of place! :P

User avatar
Philip.E.Thomas
Posts: 45
Joined: Sun Aug 20, 2006 4:00 pm
Location: Fife, Scotland

Postby Philip.E.Thomas » Sun Sep 24, 2006 4:47 pm

A nice, quick solution, I'm going to try my patience (and modelling skill and have a go at what I found here http://www.all-model-railroading.co.uk/amr/index.htm

scroll down the scenery page.

Now if I can get it half as good I'll be chuffed

Danny
Posts: 425
Joined: Sun Feb 26, 2006 12:39 pm
Location: Great Britain
Contact:

Postby Danny » Sun Sep 24, 2006 5:32 pm

Philip.E.Thomas wrote:A nice, quick solution, I'm going to try my patience (and modelling skill and have a go at what I found here http://www.all-model-railroading.co.uk/amr/index.htm

scroll down the scenery page.

Now if I can get it half as good I'll be chuffed


That one with the plaster looks well good, I bet you will be chuffed if you can get it to look like that!

User avatar
BrotherWolf
Posts: 206
Joined: Mon Oct 02, 2006 9:45 am
Location: nr The Old Lydbrook Junction

Postby BrotherWolf » Wed Oct 04, 2006 3:59 am

One idea I've heard is to do the plaster like the link in the post above suggests but instead of shaping with a knife......press crumpled tin foil into the plaster to create a craggy effect.

User avatar
live-frog
Posts: 644
Joined: Thu Apr 06, 2006 10:01 am
Location: Yeovil Somerset

Postby live-frog » Wed Oct 04, 2006 8:14 am

BrotherWolf wrote:One idea I've heard is to do the plaster like the link in the post above suggests but instead of shaping with a knife......press crumpled tin foil into the plaster to create a craggy effect.


I did that on a previous layout - worked well.

User avatar
Mikol
Posts: 225
Joined: Thu Jul 13, 2006 5:29 pm
Location: Luton, UK
Contact:

Postby Mikol » Mon Dec 04, 2006 3:52 pm

just another pic after i gave the faces a little more scenery. A bad excuse for an update but hey...
