class 158 question

Postby londonboi1985 » Fri May 20, 2011 5:50 pm

hi all does anyone know if the bachmann 31-504 which is the class 158 DCC ready if not is it easy to convert o ver to dcc
This train is about to depart stand clear of the closing doors please........ mind the doors

User avatar
SRman
Posts: 1096
Joined: Fri Oct 03, 2008 2:26 am

Re: class 158 question

Postby SRman » Sat May 21, 2011 1:15 pm

No, the Bachmann class 158/159 is not DCC ready - neither are the classes 166 and 170, unfortunately.

Hard-wiring a decoder to the motor is easy enough - black and red wires to the track pick ups and orange and grey to the motor brushes. You could also snip off the capacitors while you are delving into the works.

The tricky bit is wiring the lights - I'm still working on mine!

User avatar
poliss
Posts: 1661
Joined: Mon Jun 20, 2005 5:28 pm

Re: class 158 question

Postby poliss » Sat May 21, 2011 1:43 pm


User avatar
hairyhandedfool
Posts: 1014
Joined: Sat Jun 07, 2008 8:28 am

Re: class 158 question

Postby hairyhandedfool » Sat May 21, 2011 6:15 pm

It's simple to dcc the lights using the existing leds. The return wire from the decoder is soldered to the 'pick-up' side of the resistors, the function wires are soldered to the 'LED' side of the resistors. Obviously you will need to disconnect the resistors from the pick-ups aswell. The only thing this won't let you do is have the tail and headlights on simultaneously at the same end, but then you are unlikely to ever need that anyway.
"Dying is easy, its living that scares me to death"
Annie Lennox - Cold (from the album "Diva")

Stressed? Fight my brute
You can now join my Clan

User avatar
martin_l_jones
Posts: 428
Joined: Thu Aug 17, 2006 10:19 pm
Location: Worcester
Contact:

Re: class 158 question

Postby martin_l_jones » Sun May 22, 2011 9:56 am

Its is a simple job, I did post some photos on how to do it some time ago.

Do a search for DCC lights or similar it should turn up..

Cant remneber the exact post it was under..
No more fotopic, now onto flickr...

Just started to load up my photos and video, see my layout and the real things at..
http://www.youtube.com/user/mljones21
http://www.flickr.com/photos/16645820@N06/6157779077/

User avatar
martin_l_jones
Posts: 428
Joined: Thu Aug 17, 2006 10:19 pm
Location: Worcester
Contact:

Re: class 158 question

Postby martin_l_jones » Mon May 23, 2011 9:13 am

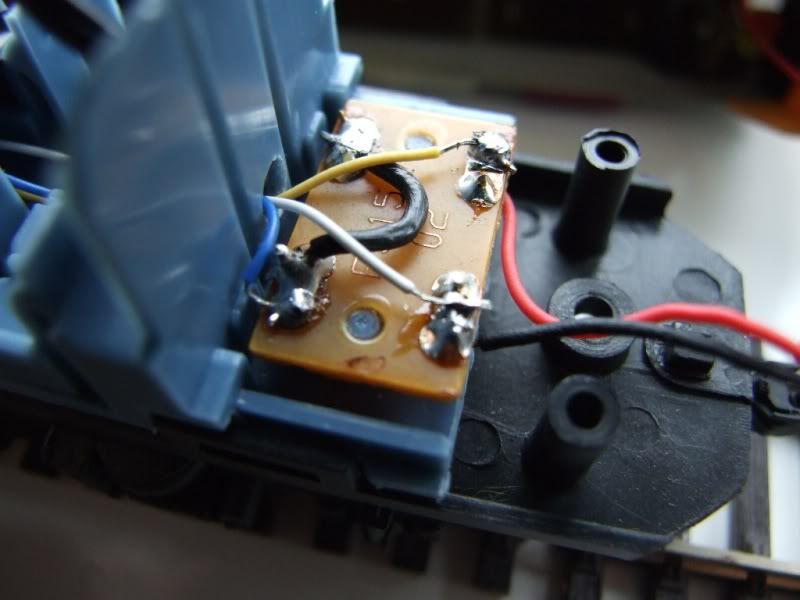

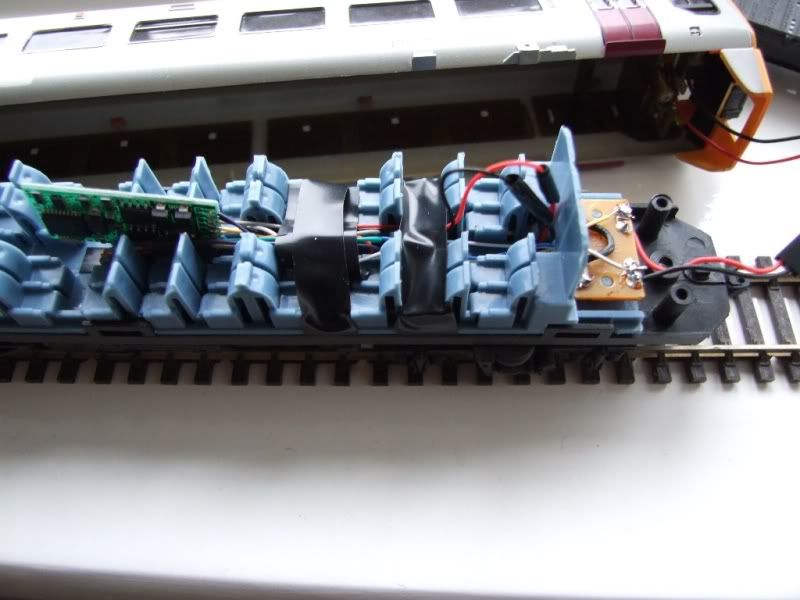

Here are the key photos..



The motor is red to red, black to black..
