Ollie's New Layout Plan - Formerly Kidderminster

Post pictures and information about your own personal model railway layout that is under construction. Keep members up-to-date with what you are doing and discuss problems that you are having.
User avatar
olliereading1123
Posts: 467
Joined: Wed Jan 16, 2008 9:44 pm
Location: Sheffield!!

Re: Ollie's New Layout Plan - Formerly Kidderminster

Postby olliereading1123 » Tue Mar 22, 2011 6:09 am

G'morning

This isn't so much of an update, more of a re-call. I noticed i have only put up the first plan of the layout, i have since altered it slightly and this is it below:

And this is a rough idea of the scenic idea:

Ta-Da

Ollie
Bespoke layout construction and design, http://thefiddleyard.webs.com/

User avatar
SouthernBoy
Posts: 1753
Joined: Sun Oct 08, 2006 11:01 pm
Location: The past: We do things differently there

Re: Ollie's New Layout Plan - Formerly Kidderminster

Postby SouthernBoy » Tue Mar 22, 2011 7:42 pm

I like that plan - loads of storage for trains to be constantly changing if you want - but an easy-on-the-eye, unfussy and relaxed scenic section. Lots of nicely-flowing curves too.
The only thing I noticed was lack of connection between main and local lines - what's the idea behind that?

User avatar
olliereading1123
Posts: 467
Joined: Wed Jan 16, 2008 9:44 pm
Location: Sheffield!!

Re: Ollie's New Layout Plan - Formerly Kidderminster

Postby olliereading1123 » Tue Mar 22, 2011 7:58 pm

Hi SouthernBoy,

The idea is that the lower 'local' line is a preserved railway (excuse to run my steamers), where as the upper 'main' line will feature all the modern traction. I have left them as two seperate curcuits for a number of reasons:
a) Although the mainline will deffinatley be DCC i may leave the preserved line analogue (to save me chipping the smaller locos)
b) If i do go digital i want to operate the two levels on different systems. I already have the Hornby Select, which i would use for the less busy preserved line, but i am wanting to get a more powerful system for the mainlines (most likely the Gaugemaster one)
c) Finally if i leave it as two seperate loops it would mean i could still have power to one whilst i worked on the other. So for example, i want to re-wire a section on the mainline, i could cut power to that but leave the preserved running without the risk of me shorting it through messed up wiring on the main.


Hope thats helped :)

Ollie
Bespoke layout construction and design, http://thefiddleyard.webs.com/

User avatar
SouthernBoy
Posts: 1753
Joined: Sun Oct 08, 2006 11:01 pm
Location: The past: We do things differently there

Re: Ollie's New Layout Plan - Formerly Kidderminster

Postby SouthernBoy » Tue Mar 22, 2011 9:23 pm

Thanks - it just caught my curiosity (people usually have method in their madness) - and you've definitely got some well thought-through reasons for the set-up :)

User avatar
olliereading1123
Posts: 467
Joined: Wed Jan 16, 2008 9:44 pm
Location: Sheffield!!

Re: Ollie's New Layout Plan - Formerly Kidderminster

Postby olliereading1123 » Tue Apr 26, 2011 11:01 pm

Oh my goodness, an update!

I have managed to get some more track layed, i'll let the photos talk

These are the longest three roads and the stock shown is purely to indicate their size, these will most likely hold freight trains.

Feel free to question me :D

Ollie
Bespoke layout construction and design, http://thefiddleyard.webs.com/

User avatar
olliereading1123
Posts: 467
Joined: Wed Jan 16, 2008 9:44 pm
Location: Sheffield!!

Re: Ollie's New Layout Plan - Formerly Kidderminster

Postby olliereading1123 » Sat May 28, 2011 1:15 am

Hello all

Not massive news but i got myself an arriva 150/2 a month or so ago

I am currenly paying off some dapol items at work so photos of them will aqppear as and when...

Oh and there is a small bit of news..... [size=20pt]A full loop is now laid!!!![/size] Yes at last i have managed to run something around the whole layout. For now it is the lower loop and i will be posting pics and videos once i've taken them lol


Ollie
Bespoke layout construction and design, http://thefiddleyard.webs.com/

User avatar
olliereading1123
Posts: 467
Joined: Wed Jan 16, 2008 9:44 pm
Location: Sheffield!!

Re: Ollie's New Layout Plan - Formerly Kidderminster

Postby olliereading1123 » Sat Jul 30, 2011 2:24 pm

Hello All!!

Few things to catch up on, first is the promised video of something travelling around the lower loop
http://www.youtube.com/watch?v=5NOmilew7Wc

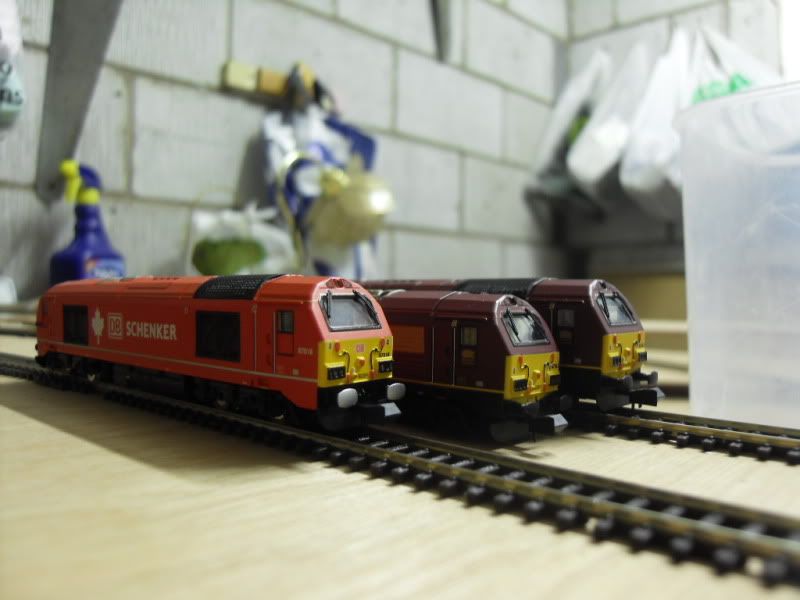

Next i'll do my new stock, starting with 3 more 67's (2 powered, 1 dummy) This takes me up to 10!

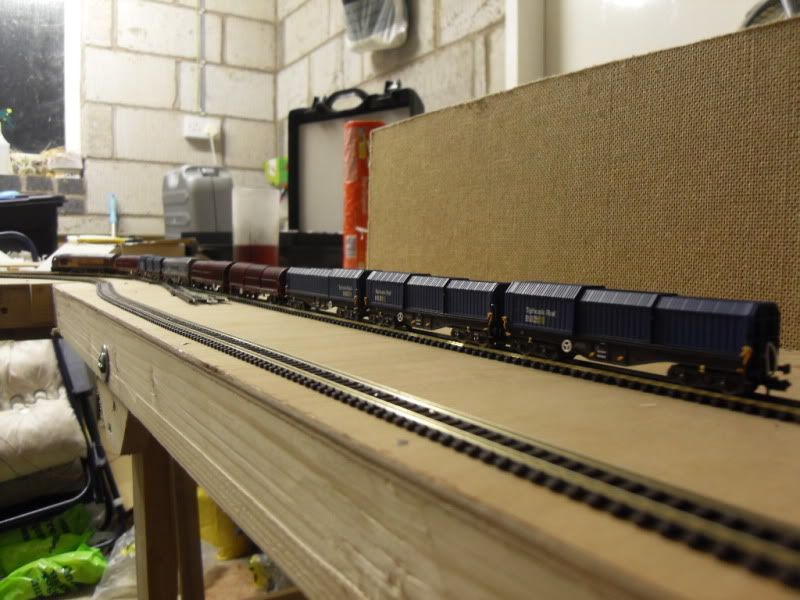

Next i've purchased a couple more wagons for my steel train which is now 8 vehicles long

I've now got my first Electric loco, this being a Dapol 86 in powerhaul livery

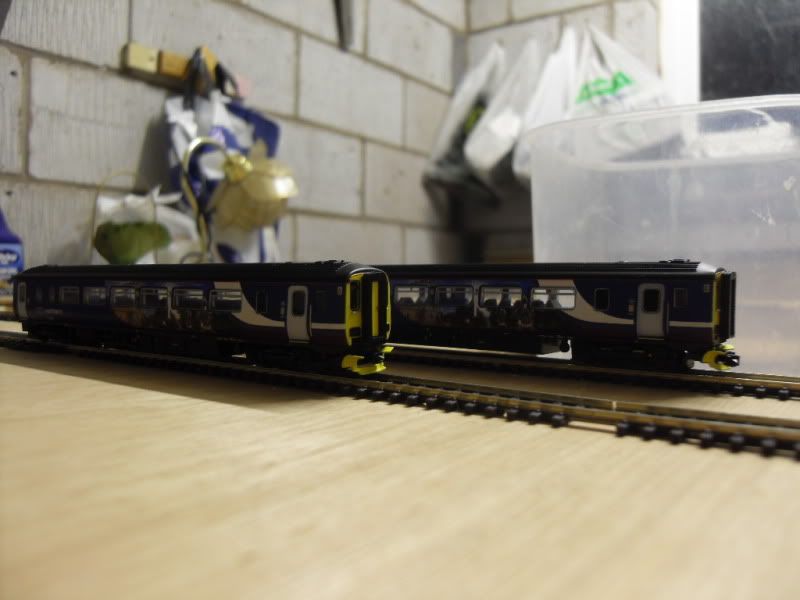

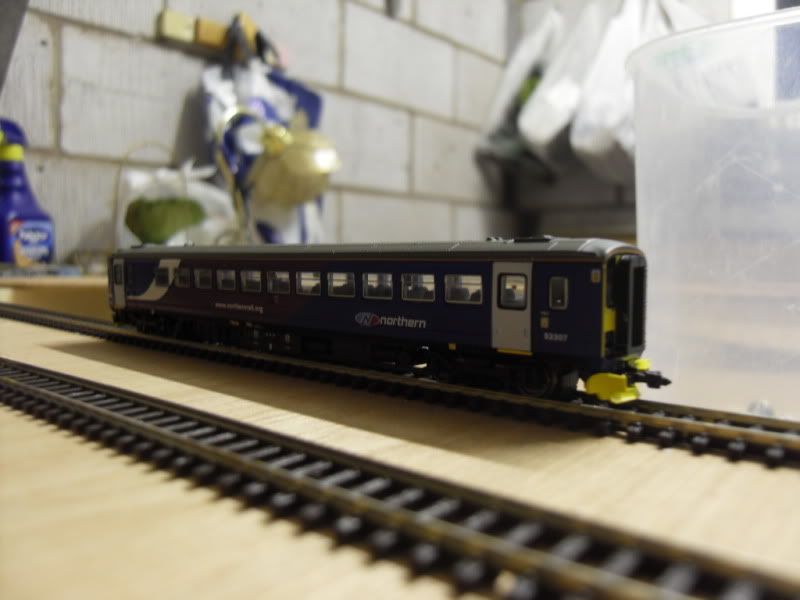

Unit wise i've got a Northern Dummy 153 and Powered S&C 156 (156 was an ebay bargain!) I've also got a powered Northern 153 and 156 at work

Lastly i picked this up in rails, a porterbrook barrier coach

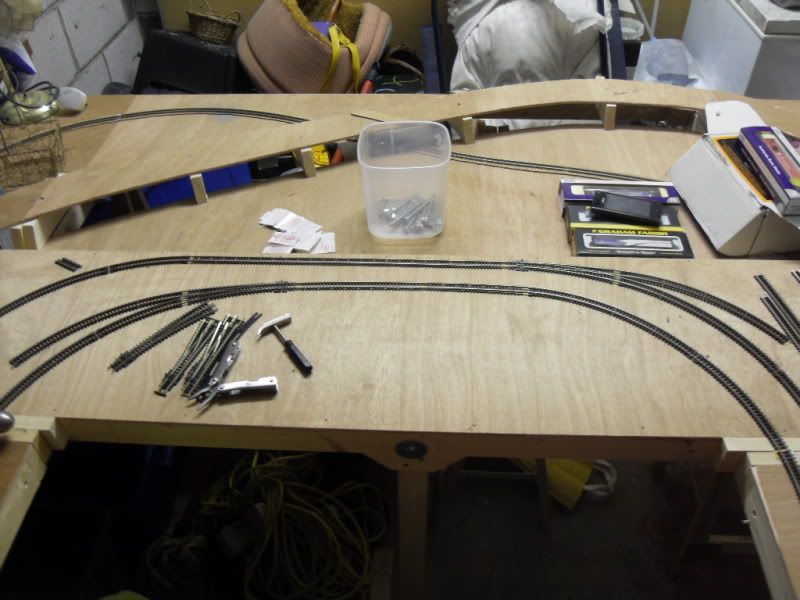

Layout wise i've laid a bit more track, i'll let the pics do the talking

So, what d'ya think?

Ollie
Bespoke layout construction and design, http://thefiddleyard.webs.com/

35011 GSN
Posts: 877
Joined: Sun Mar 02, 2008 9:10 pm
Location: Manchester
Contact:

Re: Ollie's New Layout Plan - Formerly Kidderminster

Postby 35011 GSN » Sat Jul 30, 2011 3:10 pm

I love those 67s! :D
