Hornby Pug Other Body's.

Postby Tiddles » Wed Oct 27, 2010 11:18 pm

What other loco body's will fit on the Hornby Pug (Smoky Joe) chassis?
The Baltimore and Ohio Railroad, “Linking 13 Great States With The Nation.”

User avatar
kiwitram
Posts: 321
Joined: Tue Apr 20, 2010 7:11 pm
Location: England

Re: Hornby Pug Other Body's.

Postby kiwitram » Thu Oct 28, 2010 2:05 pm

If you remove the dicast block, the hornby class 101 0-4-0 body and dicast block will clip on, but there is a weight required at the front. Hope this help, Kieran :D
47864[/url]

User avatar
Bufferstop
Posts: 9523
Joined: Thu Mar 11, 2010 12:06 pm
Location: Bottom end of N. Warks line

Re: Hornby Pug Other Body's.

Postby Bufferstop » Thu Oct 28, 2010 6:23 pm

With the exception of the L&Y/LMS Pug (ex Dapol) all of Hornby's 0-4-0s have used that chassis since the introduction of GWR 101 some time around 1980.
Growing old, can't avoid it. Growing up, forget it!
My Layout, My Workbench Blog and My Opinions

rocketman
Posts: 567
Joined: Wed Jan 13, 2010 6:58 pm

Re: Hornby Pug Other Body's.

Postby rocketman » Thu Oct 28, 2010 7:10 pm

and some kits
rocketman

User avatar
kiwitram
Posts: 321
Joined: Tue Apr 20, 2010 7:11 pm
Location: England

Re: Hornby Pug Other Body's.

Postby kiwitram » Thu Oct 28, 2010 7:56 pm

All of Hornby's 0-4-0s apart from the D class, Polly type and the original 1980's Thomas body
47864[/url]

User avatar
Tiddles
Posts: 800
Joined: Sat Oct 09, 2010 6:17 pm

Re: Hornby Pug Other Body's.

Postby Tiddles » Sun Oct 31, 2010 1:08 pm

Hi.

Thanks for all the advice.

Will try to find a 101 body with frame or non runner.
The Baltimore and Ohio Railroad, “Linking 13 Great States With The Nation.”

Dad-1
Posts: 5083
Joined: Sun Aug 24, 2008 8:05 pm
Location: Dorset - A mile from West Bay.

Re: Hornby Pug Other Body's.

Postby Dad-1 » Sun Nov 07, 2010 2:47 pm

Hi Tiddles,

Missed this one - not been reading everything recently.
There have been so many Hornby 0-4-0 variants over the years, I would suggest at least 30 .......
I have 5 here ....... I understand the 'difficult' chassis quite well now !!


Take the Highland Railways Pug, three different issues with names on the side, then the Calledonian, than the BR, then the ...... and so it goes on.
Most of these have the same chassis design be they from the 1970's to date. The original Caledonian blue pug had wire grab rails and cab roof supports (as seen on mine), current and most later issues were simplified and omitted this detail.
The minor differences were those with outside pistons, and those with just the basic coupling rod. Search Ebay and you'll see many variants coming up for sale giving you the chance to understand what's out there.

My Caledonian has the body off as I've just burnt out the 'forward direction' part of the decoder !

Geoff T.
Remember ... I know nothing about railways.
viewtopic.php?f=22&t=32187 and Another on viewtopic.php?f=22&t=28436&start=60&st=0&sk=t&sd=a

rocketman
Posts: 567
Joined: Wed Jan 13, 2010 6:58 pm

Re: Hornby Pug Other Body's.

Postby rocketman » Sun Nov 07, 2010 9:33 pm

Tiddles, don't be discouraged by this apparent shambles. It will all come together with consummate ease sometime soon. Have a look at some of his earlier threads (St Ivel and earlier) if you do not believe me)
Geoff
please do not sell yourself short here
many here need what you give them
and aspire to something better than they might have otherwise

She should do the washing up more often! and you may quote me
rocketman

Dad-1
Posts: 5083
Joined: Sun Aug 24, 2008 8:05 pm
Location: Dorset - A mile from West Bay.

Re: Hornby Pug Other Body's.

Postby Dad-1 » Tue Nov 09, 2010 4:19 pm

Rocketman ....
She cooks, I eat ........ and I intend to keep it that way !!

For Tiddles and anyone else - add weight to your 0-4-0's. I'm about to add a DCC decoder to GWR 105 and before I get the chip in added lead weight to improve traction in addition to improvements of electrical contact.


On this particular version of the chassis Hornby fix a weight in one of the forward voids. You still have space just inside the cylinders which I've not struggled to fill, but have added a pair of small lead weights. In front of the worm drive there's another void where I've stuck a lead weight standing against the hornby weight, note it must be no wider to clear the body. That leaves a void under the cab which has been filled to the chassis top line.

You have space in this body to add weight along the sides, but must leave space for the motor cradle and motor retaining clip ends. Remember even another 5 grammes of weight can be useful.

Because this will have a decoder mounted above the motor I can't add more weight here, but for analogue operation additional ballast can be stuck in the body or even on the motor using superglue (VERY carefully not to get anything in the motor !!)

Geoff T.
Remember ... I know nothing about railways.
viewtopic.php?f=22&t=32187 and Another on viewtopic.php?f=22&t=28436&start=60&st=0&sk=t&sd=a

User avatar
GeraldH
Posts: 674
Joined: Fri Aug 13, 2010 6:10 pm
Contact:

Re: Hornby Pug Other Body's.

Postby GeraldH » Thu May 17, 2012 11:13 pm

Tiddles wrote:What other loco body's will fit on the Hornby Pug (Smoky Joe) chassis?


The old Triang "Top Tank" and probably the similar clockwork loco bodies, can be slid on top of the 0-4-0 chassis with minimal modifications :)
Gerald H - alternative modeller :)

My layout: viewtopic.php?t=28854

User avatar
D605Eagle
Posts: 2074
Joined: Mon Mar 22, 2010 12:58 am
Location: Staffordshire
Contact:

Re: Hornby Pug Other Body's.

Postby D605Eagle » Fri May 18, 2012 6:03 pm

Has Hornby ever done a Green class 06 with wasp stripes?

User avatar
Ken Shabby
Posts: 274
Joined: Thu Jan 15, 2009 12:20 pm

Re: Hornby Pug Other Body's.

Postby Ken Shabby » Mon Jul 09, 2012 8:36 pm

Has Hornby ever done a Green class 06 with wasp stripes?

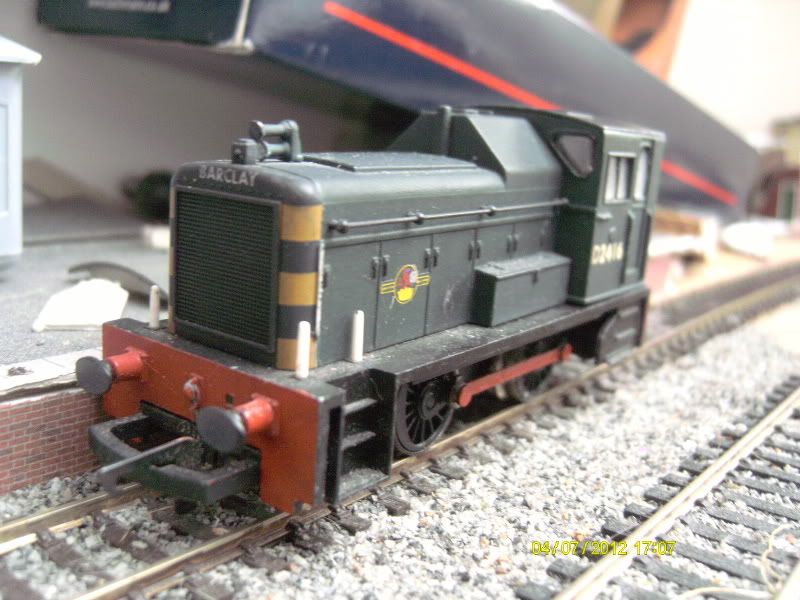

No, I do'nt think so. I came up with this one by repainting a BR blue one. I also added flush glazing which was a real swine to fit an added weight to the chassis. Look at all that dust.

Ken

User avatar
D605Eagle
Posts: 2074
Joined: Mon Mar 22, 2010 12:58 am
Location: Staffordshire
Contact:

Re: Hornby Pug Other Body's.

Postby D605Eagle » Mon Jul 09, 2012 10:28 pm

Ken Shabby wrote:
Has Hornby ever done a Green class 06 with wasp stripes?


No, I do'nt think so. I came up with this one by repainting a BR blue one. I also added flush glazing which was a real swine to fit an added weight to the chassis. Look at all that dust.

Ken

Thanks Ken, that looks real sweet BTW!

User avatar
GeraldH
Posts: 674
Joined: Fri Aug 13, 2010 6:10 pm
Contact:

Re: Hornby Pug Other Body's.

Postby GeraldH » Mon Jul 09, 2012 10:37 pm

That green 06 is very nice :)
Gerald H - alternative modeller :)

My layout: viewtopic.php?t=28854

User avatar
Jonny
Posts: 379
Joined: Tue Jul 26, 2011 1:15 am
Location: Yorkshire, Britain

Re: Hornby Pug Other Body's.

Postby Jonny » Wed Jul 11, 2012 9:10 pm

Don't know if this helps but I believe the Hornby Percy fits on that chassis as well.
