Simons OO garage set
Hi all, I'd like to share my plans for my model railway I have started building in the garage. The garage itself is 16' x 8' with an up and over door at one end and an access door at the other.
The set will be built in 00 gauge using code 75 peco flexible track. Though I have no controllers yet, I have opted to go for digital.
Though initially I had planned to base my railway on the south Devon coast I feel there is not nearly enough room for what I would like to see so the only theme is 1980s to present. Of more importance to me is having numerous engines running simultaneously so after a great deal of planning I have decided upon 4 complete circuits, two of which are double loops rising 10cm to the upper level (green background in plan)
All corners will have minimum radius of 24" with the exception of the loop (purple track in my plan) as there will only be enough room for approx 20" radius. Inclines will be no steeper than 1 in 30 with minimal curves along the way. Engines will be pulling maximum 6 carriages so hopefully no problems here.
http://i239.photobucket.com/albums/ff15 ... ayplan.jpg
I have constructed the base with sundeala on top of 6mm ply extending 3' from all walls so plenty of space for track. Surprisingly the 2' wide central area gives adequate space to work from!
The layout has taken accessibility into consideration so all track can be cleaned with a track rubber if necessary.
Though I just started to construct a 10' x 10' set in a shed at my last house this could be classed as my first real attempt. What could possibly go wrong?
The set will no doubt evolve during construction so all feedback/advice will be greatly appreciated.
Regards, Simon
The set will be built in 00 gauge using code 75 peco flexible track. Though I have no controllers yet, I have opted to go for digital.
Though initially I had planned to base my railway on the south Devon coast I feel there is not nearly enough room for what I would like to see so the only theme is 1980s to present. Of more importance to me is having numerous engines running simultaneously so after a great deal of planning I have decided upon 4 complete circuits, two of which are double loops rising 10cm to the upper level (green background in plan)
All corners will have minimum radius of 24" with the exception of the loop (purple track in my plan) as there will only be enough room for approx 20" radius. Inclines will be no steeper than 1 in 30 with minimal curves along the way. Engines will be pulling maximum 6 carriages so hopefully no problems here.
http://i239.photobucket.com/albums/ff15 ... ayplan.jpg
I have constructed the base with sundeala on top of 6mm ply extending 3' from all walls so plenty of space for track. Surprisingly the 2' wide central area gives adequate space to work from!
The layout has taken accessibility into consideration so all track can be cleaned with a track rubber if necessary.
Though I just started to construct a 10' x 10' set in a shed at my last house this could be classed as my first real attempt. What could possibly go wrong?
The set will no doubt evolve during construction so all feedback/advice will be greatly appreciated.
Regards, Simon
Welcome to the forum!
You're plan looks quite ambitious.
As I model 1970's - 1980's I will watch your progress with interest.
I also wish you the best of luck, and may all your problems with the future construction be overcome with a little help from the members on this site!
You're plan looks quite ambitious.
As I model 1970's - 1980's I will watch your progress with interest.
I also wish you the best of luck, and may all your problems with the future construction be overcome with a little help from the members on this site!
2 trains, 2 railroad tracks, one going the other one coming back. Click Clack, Click Clack.
Regards
Andy
http://www.brblue.co.uk
Regards
Andy
http://www.brblue.co.uk
-
- Posts: 189
- Joined: Fri Aug 17, 2007 3:21 pm
- Location: bucks
very intriging!! nice plan.
my imaginery friend thinks u have problems.......wait........
my layout http://www.newrailwaymodellers.co.uk/Fo ... 22&t=17368 new!!!
my layout http://www.newrailwaymodellers.co.uk/Fo ... 22&t=17368 new!!!
-
- Posts: 21
- Joined: Wed Oct 24, 2007 10:58 am
- Location: Alton, Hampshire, UK
I will definately be going for DCC though as of yet unsure which controller to go for. I will wait for more reviews over the Hornby elite and Bachmann dynamis and maybe choose one of them.

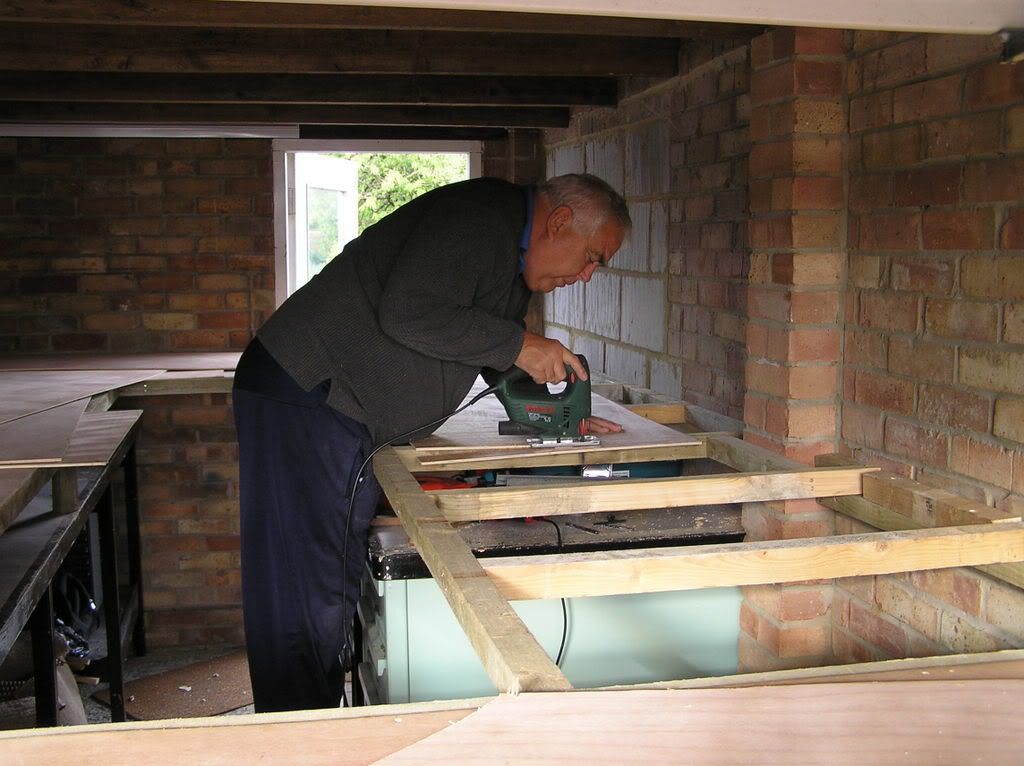

Heres a picture taken during construction of the baseboards. My dad would like nothing better than to appear in here!
Heres a picture taken during construction of the baseboards. My dad would like nothing better than to appear in here!
hi and welcome to the forum
nice looking garage space you have to work in
it would be worth painting those walls before you get into the track laying stage, and the baseboards come to think of it. i know i wish i'd had the patience to paint things before laying track in my attic, will you be using a underlay such as cork?
and once painted, when you then get to laying your excellent track plan you don't have to lift it to paint underneath
michael
nice looking garage space you have to work in
it would be worth painting those walls before you get into the track laying stage, and the baseboards come to think of it. i know i wish i'd had the patience to paint things before laying track in my attic, will you be using a underlay such as cork?
and once painted, when you then get to laying your excellent track plan you don't have to lift it to paint underneath
michael
-
- Posts: 110
- Joined: Sat Mar 24, 2007 5:14 pm
- Location: Northamptonshire
-
- Posts: 21
- Joined: Wed Oct 24, 2007 10:58 am
- Location: Alton, Hampshire, UK

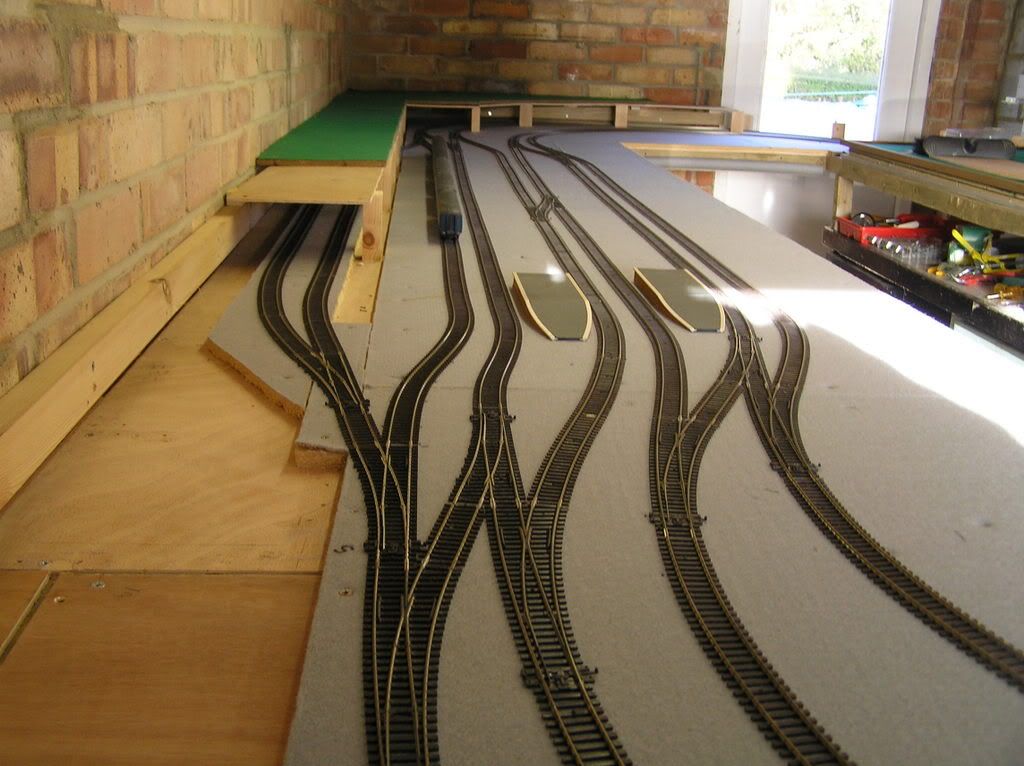

Took a couple more pics today as the sun was shining.
As you can see the platform side is almost complete. I need to change the medium point for a Y Point where it enters platform 2 to remove the horrible wiggle.
Thanks for your comments so far.
mumbles: I wish I had thought to paint the walls before starting construction. Thankfully the framework is quite solid so I can clamber on it to reach the walls.
I need to insulate the roof area as well but want to make sure there are no leaks through the winter before doing so.
The track is already built on sundeala/old notice boards so cork is not required. All scenery will go over the top of this.
Kirton Fen: I promised myself not to buy any more engines until the track is laid. I was fortunate enough to be in the Alton model shop and see a demonstration of a class 47 with sound and its a must have. Maybe treat myself for Christmas!
As you can see the platform side is almost complete. I need to change the medium point for a Y Point where it enters platform 2 to remove the horrible wiggle.
Thanks for your comments so far.
mumbles: I wish I had thought to paint the walls before starting construction. Thankfully the framework is quite solid so I can clamber on it to reach the walls.
I need to insulate the roof area as well but want to make sure there are no leaks through the winter before doing so.
The track is already built on sundeala/old notice boards so cork is not required. All scenery will go over the top of this.
Kirton Fen: I promised myself not to buy any more engines until the track is laid. I was fortunate enough to be in the Alton model shop and see a demonstration of a class 47 with sound and its a must have. Maybe treat myself for Christmas!
-
- Posts: 21
- Joined: Wed Oct 24, 2007 10:58 am
- Location: Alton, Hampshire, UK
Unfortunately he was only here for a few days to get me started.
And yes, he is great with a paintbrush and more than welcome to stop by and help me redecorate!

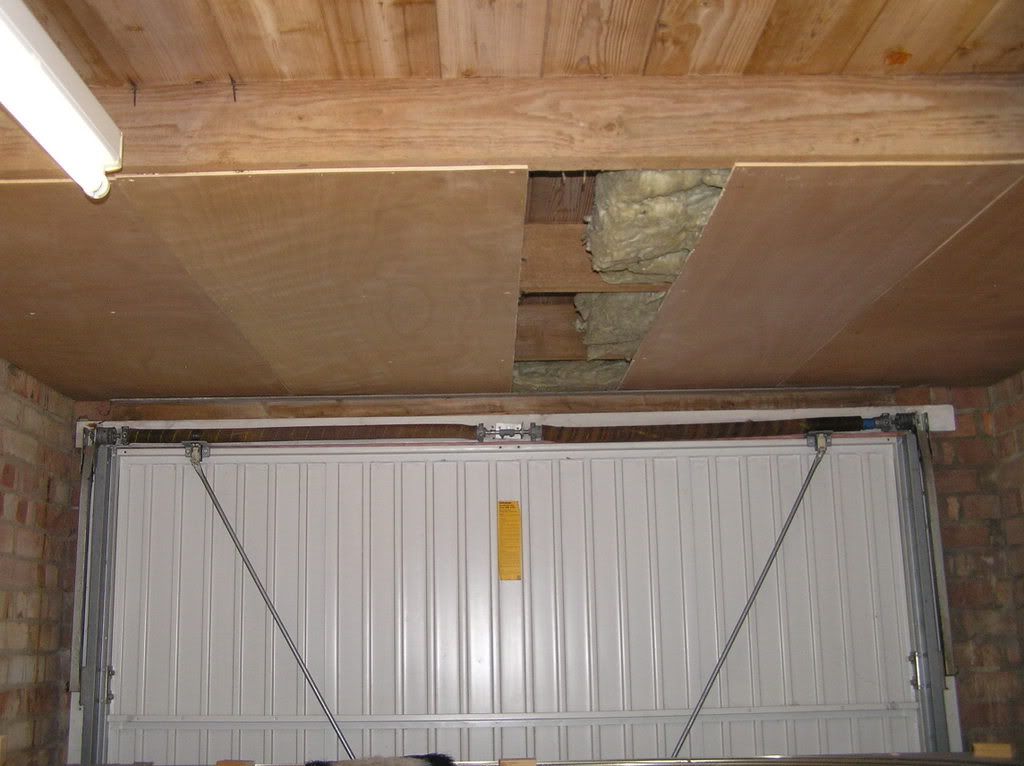

Well the last few days I have been trying to get the garage prepared for a long cold winter.
There are 3/4" gaps round the garage door which needed filling. Up the side I put some foam between 2 lines of wood, making a perfect seal with the door closed.
I also stuck some foam above the door which easily plugged that gap.
Screwfix sell a "garage draught and rain seal" which I will attach to the bottom of the door. A good opportunity to buy a cordless drill as well!
Also made a start on insulating the roof.
Maybe next week I will get to work on putting some more track down...
And yes, he is great with a paintbrush and more than welcome to stop by and help me redecorate!
Well the last few days I have been trying to get the garage prepared for a long cold winter.
There are 3/4" gaps round the garage door which needed filling. Up the side I put some foam between 2 lines of wood, making a perfect seal with the door closed.
I also stuck some foam above the door which easily plugged that gap.
Screwfix sell a "garage draught and rain seal" which I will attach to the bottom of the door. A good opportunity to buy a cordless drill as well!
Also made a start on insulating the roof.
Maybe next week I will get to work on putting some more track down...
